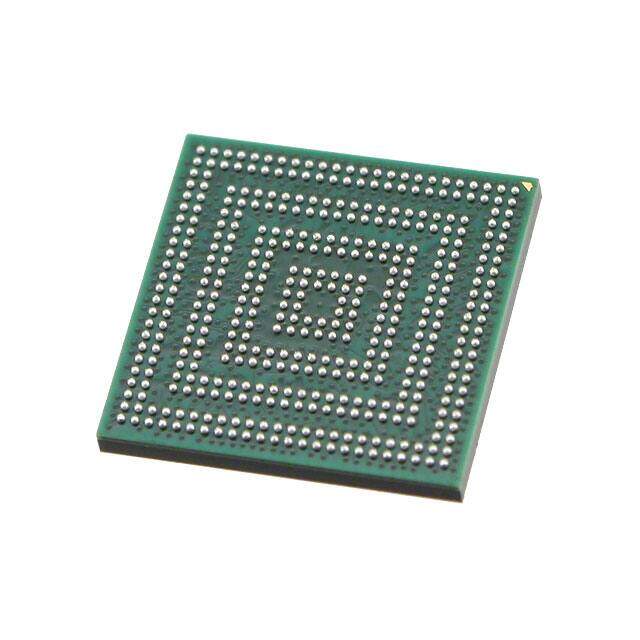

MCIMX508CVK8BR2
RoHS
RoHS compliant
RoHS compliantPackage 416-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
Processors - Application Specialized Codex 1.1 13mm
PDF
/
Buying Options
Total Price: USD $18.91
Unit Price: USD $18.9112
≥1 USD $18.9112
Inventory: 1113
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 13mm
Height Seated (Max) 1.52mm
Technical
Display & Interface Controllers EPDC, LCD
Security Features Boot Security, Cryptography, Secure JTAG
Co-Processors/DSP Multimedia; NEON? SIMD
Additional Interfaces 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART
USB USB 2.0 + PHY (2)
RAM Controllers LPDDR, LPDDR2, DDR2
Graphics Acceleration Yes
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100Mbps (1)
Voltage - I/O 1.2V 1.875V 2.775V 3.0V
RAM (words) 131072
Boundary Scan YES
Supply Current-Max 628mA
Clock Frequency 800MHz
Core Processor ARM? Cortex?-A8
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Speed 800MHz
Supply Voltage-Min (Vsup) 0.95V
Supply Voltage-Max (Vsup) 1.15V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B416
Base Part Number MCIMX508
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 1.05V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 5A992
Number of Terminations 416
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Series i.MX50
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C TA
Physical
Surface Mount YES
Package / Case 416-LFBGA
Supply Chain
Factory Lead Time 15 Weeks
