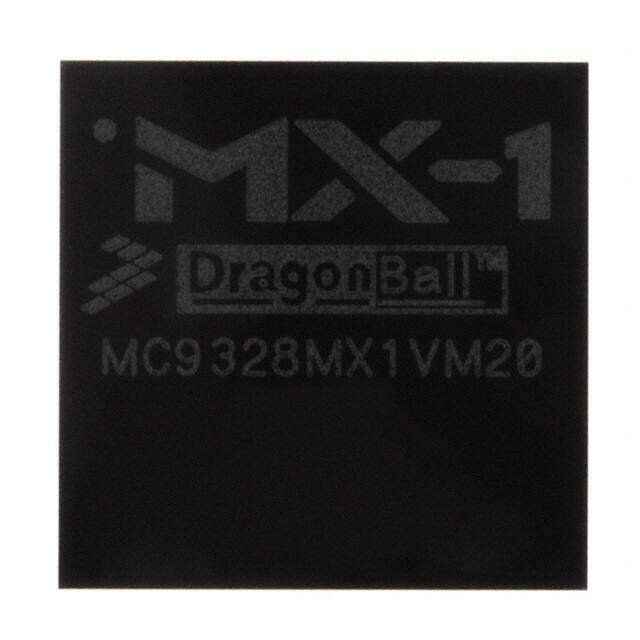

MC9328MX1VM20
RoHS
RoHS compliant
RoHS compliantPackage 256-MAPBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
ARM920T Microprocessor IC i.MX1 1 Core, 32-Bit 200MHz
PDF
/
Buying Options
Total Price: USD $25
Unit Price: USD $25.0008
≥1 USD $25.0008
Inventory: 586
Minimum: 1
-
+
Technical Details
Physical
Package / Case 256-MAPBGA
Surface Mount YES
Technical
Operating Temperature 0°C~70°C TA
Packaging Tray
Published 1994
Series i.MX1
JESD-609 Code e1
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 256
ECCN Code 3A991.A.2
Terminal Finish TIN SILVER COPPER
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.9V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number MC9328MX1
JESD-30 Code S-PBGA-B256
Supply Voltage-Max (Vsup) 2V
Supply Voltage-Min (Vsup) 1.8V
Speed 200MHz
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM920T
Clock Frequency 16MHz
Bit Size 32
Address Bus Width 25
Boundary Scan YES
Low Power Mode YES
External Data Bus Width 32
Format FIXED POINT
Integrated Cache YES
Voltage - I/O 1.8V 3.0V
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration No
RAM Controllers SDRAM
USB USB 1.x (1)
Additional Interfaces I2C, I2S, SPI, SSI, MMC/SD, UART
Display & Interface Controllers LCD, Touch Panel
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 14mm
Height Seated (Max) 1.6mm
