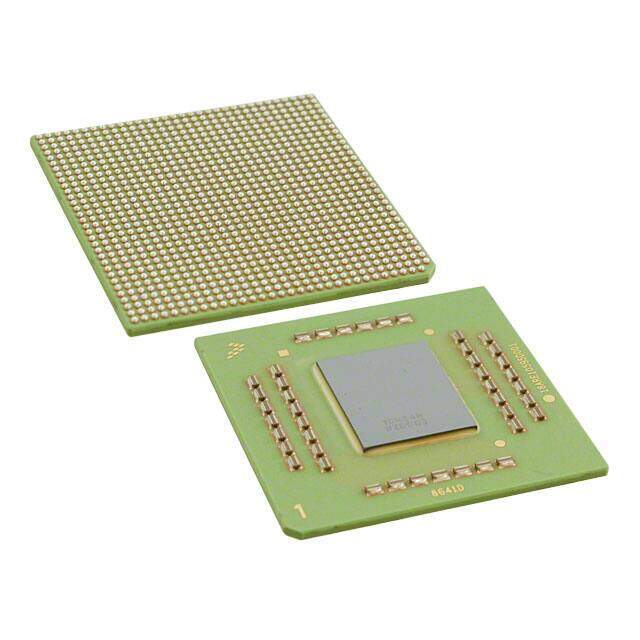

MC8641DHX1500KE
RoHS
/
Package 1023-BCBGA, FCCBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
MPU PowerPC MPC8xxx Processor RISC 32-Bit 0.09um 1.5GHz 1.1V/1.8V/2.5V/3.3V 1023-Pin FCCBGA Each
PDF
/
Buying Options
Total Price: USD $619.67
Unit Price: USD $619.6696
≥1 USD $619.6696
Inventory: 201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Package / Case 1023-BCBGA, FCCBGA
Surface Mount YES
Technical
Operating Temperature 0°C~105°C TA
Packaging Tray
Published 2002
Series MPC86xx
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code 3A991.A.1
Terminal Finish Tin/Lead (Sn/Pb)
HTS Code 8542.31.00.01
Subcategory Microprocessors
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 1.1V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number MC8641
JESD-30 Code S-CBGA-B1023
Supply Voltage-Max (Vsup) 1.15V
Power Supplies 1.11.8/2.52.5/3.3V
Supply Voltage-Min (Vsup) 1.05V
Speed 1.5GHz
uPs/uCs/Peripheral ICs Type MICROPROCESSOR
Core Processor PowerPC e600
Clock Frequency 1500MHz
Bit Size 32
Address Bus Width 32
Boundary Scan YES
Low Power Mode YES
External Data Bus Width 32
Format FLOATING POINT
Integrated Cache YES
Voltage - I/O 1.8V 2.5V 3.3V
Ethernet 10/100/1000Mbps (4)
Number of Cores/Bus Width 2 Core 32-Bit
Graphics Acceleration No
RAM Controllers DDR, DDR2
Additional Interfaces DUART, HSSI, I2C, RapidIO
Dimensions
Height Seated (Max) 2.97mm
Length 33mm
Compliance
RoHS Status Non-RoHS Compliant
