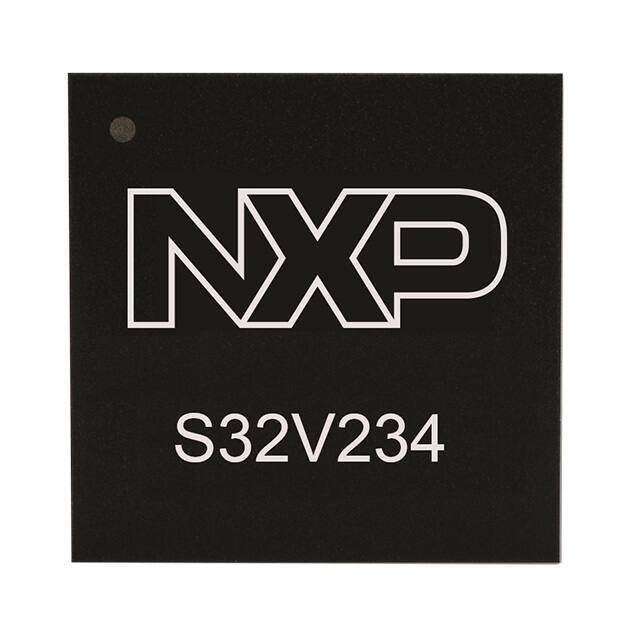

FS32V234BMN1VUB
RoHS
RoHS compliant
RoHS compliantPackage 621-FBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
ISP GPU NO CSE 800MHZ
PDF
/
Buying Options
Total Price: USD $130.45
Unit Price: USD $130.449744
≥1 USD $130.449744
≥200 USD $50.482318
≥450 USD $48.70859
≥900 USD $47.831573
Inventory: 1188
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Package / Case 621-FBGA, FCBGA
Surface Mount YES
Technical
Operating Temperature -40°C~105°C TA
Published 2015
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 621
ECCN Code 5A992
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 40
JESD-30 Code S-PBGA-B621
Supply Voltage-Max (Vsup) 1.05V
Supply Voltage-Min (Vsup) 0.95V
Speed 800MHz
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM? Cortex?-A53, ARM? Cortex?-M4
Bit Size 64
Boundary Scan YES
Low Power Mode YES
Format FLOATING POINT
Integrated Cache YES
Voltage - I/O 1V 1.8V 3.3V
Ethernet 1Gbps
Number of Cores/Bus Width 4 Core 64-Bit/1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers DDR3, DDR3L, LPDDR2
Additional Interfaces I2C, SPI, PCI, UART
Co-Processors/DSP Multimedia; NEON? MPE
Security Features AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG
Display & Interface Controllers APEX2-CL, DCU (2D-ACE), ISP, LCD, MIPICSI2, Video, VIU
Dimensions
Height Seated (Max) 2.44mm
Length 17mm
Compliance
RoHS Status ROHS3 Compliant
