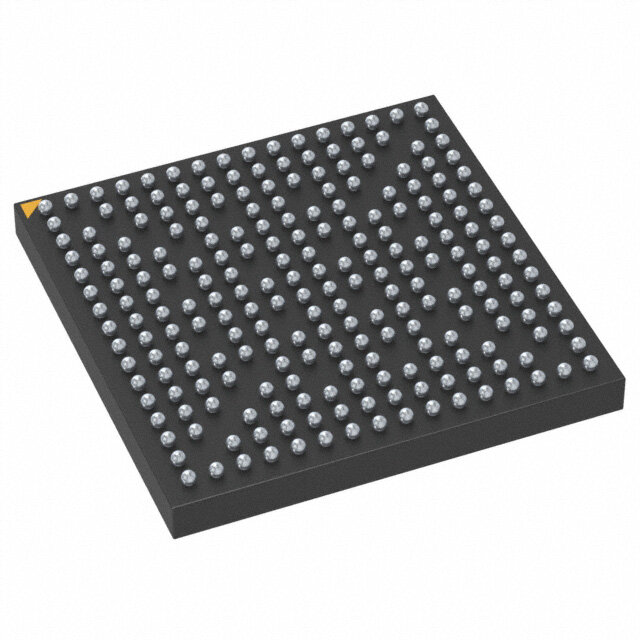

SAM9X60T-V/DWB
RoHS
RoHS compliant
RoHS compliantPackage 228-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
IC MPU EXT MEM 228TFBGA
PDF
/
Buying Options
Total Price: USD $7.18
Unit Price: USD $7.1808
≥1 USD $7.1808
≥10 USD $6.5824
≥100 USD $5.9488
Inventory: 1428
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 11mm
Height Seated (Max) 1.2mm
Technical
Display & Interface Controllers Keyboard, LCD, Touchscreen
Security Features Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins
USB USB 2.0 (3)
RAM Controllers LPDDR, LPSDR, DDR2, SDR, SRAM
Graphics Acceleration Yes
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100Mbps (2)
Voltage - I/O 3.3V
Integrated Cache YES
Format FIXED POINT
External Data Bus Width 32
Low Power Mode YES
Boundary Scan YES
Address Bus Width 26
Clock Frequency 48MHz
Core Processor ARM926EJ-S
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Speed 600MHz
Supply Voltage-Min (Vsup) 1.12V
Supply Voltage-Max (Vsup) 1.21V
JESD-30 Code R-PBGA-B228
Terminal Pitch 0.65mm
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Number of Terminations 228
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series SAM9X60
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 228-TFBGA
Supply Chain
Factory Lead Time 10 Weeks
