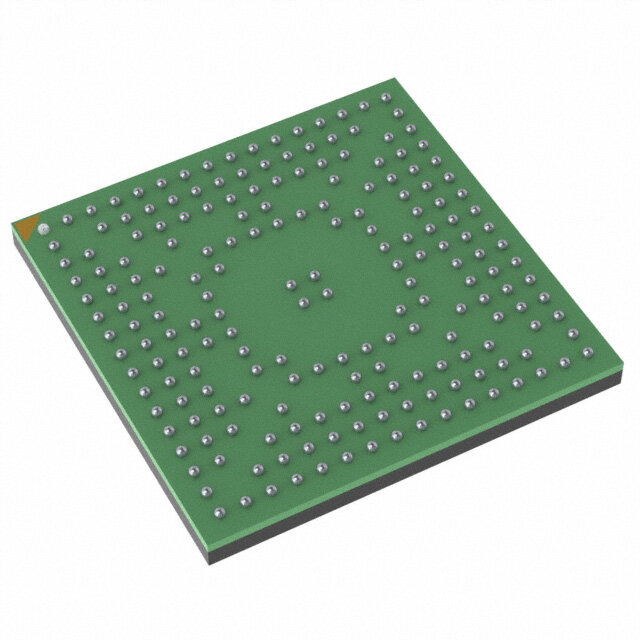

SAM9X60D1G-I/4FB
RoHS
RoHS compliant
RoHS compliantPackage 233-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
FIXED POINT MICROPROCESSOR RISC USB 2.0 (3) BALL IC Microprocessor -40C~85C TA 14mm 1.7V 50MHz
PDF
/
Buying Options
Total Price: USD $13.75
Unit Price: USD $13.7544
≥1 USD $13.7544
≥10 USD $12.6016
≥100 USD $11.4136
Inventory: 297
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Package / Case 233-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Series SAM9X60
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 233
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.8V
Terminal Pitch 0.8mm
JESD-30 Code R-PBGA-B233
Supply Voltage-Max (Vsup) 1.9V
Supply Voltage-Min (Vsup) 1.7V
Speed 600MHz
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM926EJ-S
Clock Frequency 50MHz
Address Bus Width 6
Boundary Scan YES
Low Power Mode YES
External Data Bus Width 16
Format FIXED POINT
Integrated Cache YES
Voltage - I/O 3.3V
Ethernet 10/100Mbps (2)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers LPDDR, LPSDR, DDR2, SDR, SRAM
USB USB 2.0 (3)
Security Features Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins
Display & Interface Controllers Keyboard, LCD, Touchscreen
Dimensions
Height Seated (Max) 1.2mm
Length 14mm
Compliance
RoHS Status ROHS3 Compliant
