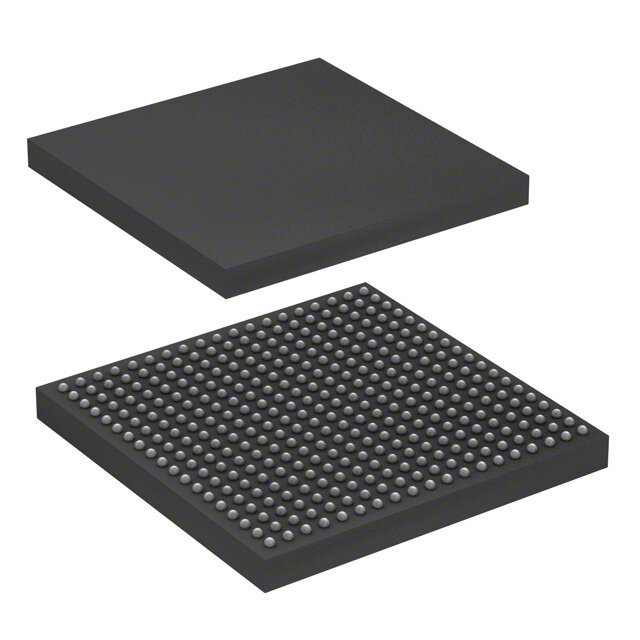

ATSAMA5D42A-CU
RoHS
RoHS compliant
RoHS compliantPackage 361-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
ATMEL ATSAMA5D42A-CUMPU, 32BIT, CORTEX-A5, 528MHZ, LFBGA-361
PDF
/
Buying Options
Total Price: USD $68.06
Unit Price: USD $68.0599
≥1 USD $68.0599
≥10 USD $65.93285
≥100 USD $63.80675
≥500 USD $61.6797
≥1000 USD $55.29855
Inventory: 1176
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Contact Plating Copper, Silver, Tin
Package / Case 361-TFBGA
Surface Mount YES
Number of Pins 361
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2014
Series SAMA5D4
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 361
Terminal Finish Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.26V
Terminal Pitch 0.8mm
Frequency 528MHz
Base Part Number ATSAMA5D42
Operating Supply Voltage 1.8V
Interface 2-Wire, EBI/EMI, Ethernet, I2C, MMC, SD, SPI, UART, USART, USB
Max Supply Voltage 1.98V
Min Supply Voltage 1.62V
Memory Size 128kB
Oscillator Type Internal
Number of I/O 152
Speed 600 MHz
RAM Size 128kB
Memory Type L2 Cache, ROM, SRAM
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM? Cortex?-A5
Peripherals DMA, LCD, POR, PWM, WDT
Data Bus Width 32b
Number of Timers/Counters 3
Address Bus Width 26
Core Architecture ARM
Boundary Scan YES
Low Power Mode YES
Format FIXED POINT
Integrated Cache YES
Voltage - I/O 1.2V 1.8V 3.3V
Ethernet 10/100Mbps (1)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers LPDDR, LPDDR2, DDR2
USB USB 2.0 (3)
Additional Interfaces EBI, I2C, MMC/SD/SDIO, SPI, SSC, UART, USART
Co-Processors/DSP Multimedia; NEON? SIMD
Number of Cores 1
Security Features AES, SHA, TDES, TRNG
Display & Interface Controllers LCD, Touchscreen
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
