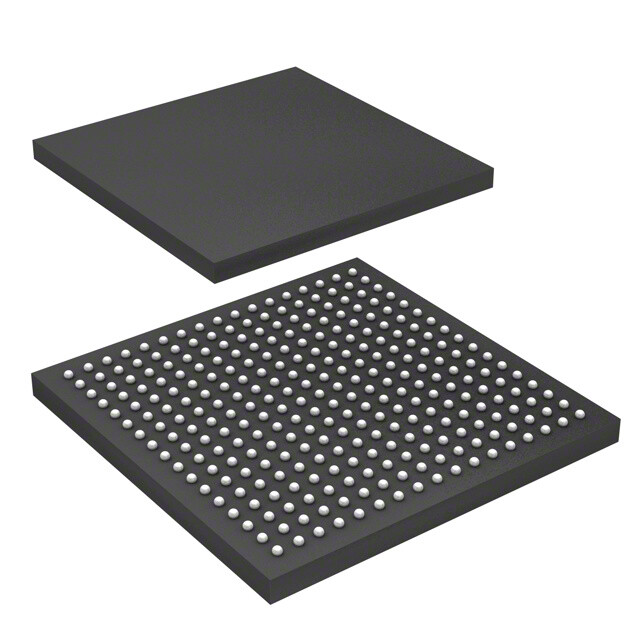

ATSAMA5D27C-D1G-CU
RoHS
RoHS compliant
RoHS compliantPackage 289-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
BGA GREEN, IND TEMP,MRLC,1GBIT D
PDF
/
Buying Options
Total Price: USD $16.38
Unit Price: USD $16.3768
≥1 USD $16.3768
≥10 USD $15.0216
≥100 USD $13.587288
Inventory: 3758
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Package / Case 289-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series SAMA5D2
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 289
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.8V
Terminal Pitch 0.8mm
Frequency 500MHz
Base Part Number ATSAMA5D27
JESD-30 Code S-PBGA-B289
Interface CAN, EBI/EMI, Ethernet, I2C, I2S, LIN, SPI, UART, USB
Max Supply Voltage 3.6V
Min Supply Voltage 1.1V
Memory Size 128MB
Number of I/O 128
RAM Size 128kB
Memory Type DDR2, SDRAM
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM? Cortex?-A5
Bit Size 16
Data Bus Width 32b
Number of Timers/Counters 6
Boundary Scan YES
Low Power Mode YES
Number of A/D Converters 1
Format FLOATING POINT
Integrated Cache YES
Voltage - I/O 3.3V
Number of UART Channels 10
Number of ADC Channels 12
Ethernet 10/100Mbps (1)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI
USB USB 2.0 + HSIC
Additional Interfaces I2C, SMC, SPI, UART, USART, QSPI
Number of Serial I/Os 9
Max Junction Temperature (Tj) 125°C
Co-Processors/DSP Multimedia; NEON? MPE
Number of PWM Channels 4
Number of I2C Channels 7
On Chip Data RAM Width 16
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC
Ambient Temperature Range High 105°C
Display & Interface Controllers Keyboard, LCD, Touchscreen
Number of USB Channels 3
Dimensions
Height 1.4mm
Compliance
RoHS Status ROHS3 Compliant
