ATSAMA5D24A-CUR
RoHS
RoHS compliant
RoHS compliantPackage 256-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
PTC, HSIC, AESOTF - BGA GREEN, IND TEMP,MRLA,T&R
PDF
/
Inventory: 1820
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Base Part Number ATSAMA5D24
Interface EBI/EMI, Ethernet, I2C, IrDA, LIN, MMC, SD, SDIO, SPI, UART, USART, USB
Oscillator Type Internal
Number of I/O 105
Memory Type External Program Memory
Core Processor ARM? Cortex?-A5
Peripherals DMA, LCD, POR, PWM, WDT
Core Architecture ARM
Voltage - I/O 3.3V
Ethernet 10/100Mbps (1)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI
USB USB 2.0 + HSIC
Additional Interfaces I2C, SMC, SPI, UART, USART, QSPI
Co-Processors/DSP Multimedia; NEON? MPE
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC
Display & Interface Controllers Keyboard, LCD, Touchscreen
Frequency 500MHz
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series SAMA5D2
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Compliance
RoHS Status ROHS3 Compliant
Physical

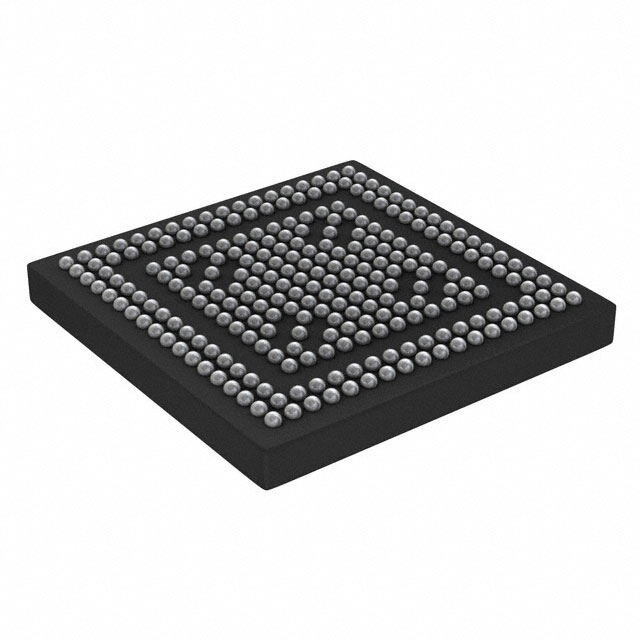

Package / Case 256-TFBGA
Supply Chain
Factory Lead Time 19 Weeks
