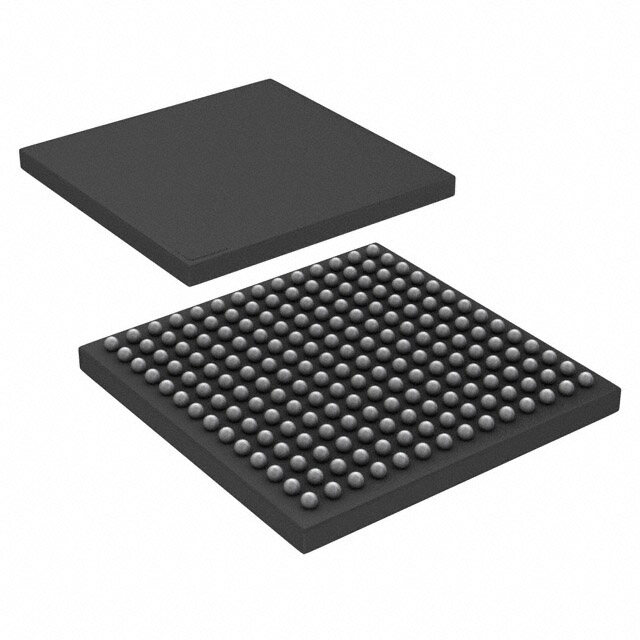

ATSAMA5D22C-CUR
RoHS
RoHS compliant
RoHS compliantPackage 196-TFBGA, CSBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
FLOATING POINT MICROPROCESSOR RISC USB 2.0 + HSIC BALL IC Microprocessor -40C~85C TA 11mm 1.1V 24MHz
PDF
/
Buying Options
Total Price: USD $12.05
Unit Price: USD $12.0528
≥1 USD $12.0528
≥10 USD $11.37056
≥100 USD $10.726944
≥500 USD $10.119754
≥1000 USD $9.546939
Inventory: 1525
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 11mm
Height Seated (Max) 1.2mm
Technical
Display & Interface Controllers Keyboard, LCD, Touchscreen
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC
Co-Processors/DSP Multimedia; NEON? MPE
Additional Interfaces I2C, SMC, SPI, UART, USART, QSPI
USB USB 2.0 + HSIC
RAM Controllers LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI
Graphics Acceleration Yes
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100Mbps (1)
Voltage - I/O 3.3V
Integrated Cache YES
Format FLOATING POINT
External Data Bus Width 16
Low Power Mode YES
Boundary Scan YES
Address Bus Width 26
Clock Frequency 24MHz
Core Processor ARM? Cortex?-A5
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Speed 500MHz
Supply Voltage-Min (Vsup) 1.1V
Supply Voltage-Max (Vsup) 1.32V
JESD-30 Code S-PBGA-B196
Base Part Number ATSAMA5D22
Terminal Pitch 0.75mm
Supply Voltage 1.2V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Terminal Finish Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Number of Terminations 196
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e2
Series SAMA5D2
Published 2017
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 196-TFBGA, CSBGA
Supply Chain
Factory Lead Time 10 Weeks
