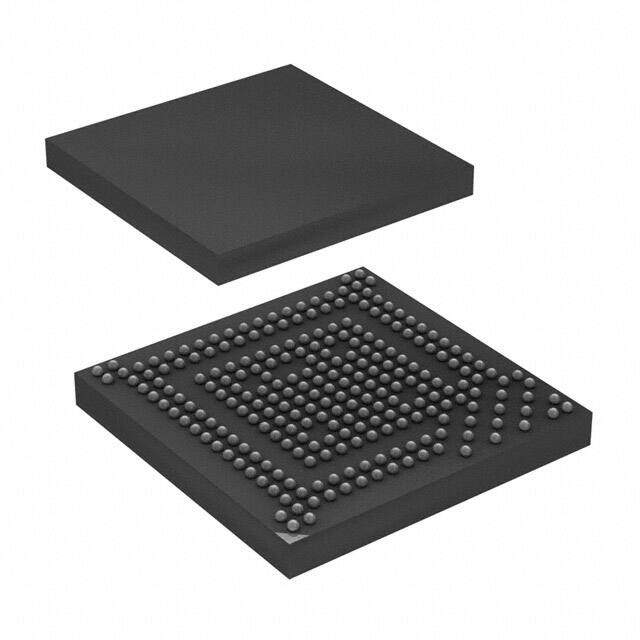

AT91SAM9G20B-CFU
RoHS
RoHS compliant
RoHS compliantPackage 247-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
MCU 32-bit AT91 ARM926EJ-S RISC 64KB ROM 1.8V/2.5V/3.3V 247-Pin TFBGA
PDF
/
Buying Options
Total Price: USD $11.87
Unit Price: USD $11.8712
≥1 USD $11.8712
≥10 USD $10.7888
≥100 USD $9.7856
Inventory: 283
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Package / Case 247-TFBGA
Number of Pins 247
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 1997
Series SAM9G
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 247
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1V
Terminal Pitch 0.5mm
Frequency 400MHz
Base Part Number AT91SAM9G20
Interface EBI/EMI, Ethernet, I2C, I2S, IrDA, MMC, SPI, UART, USART, USB
Max Supply Voltage 3.6V
Min Supply Voltage 900mV
Memory Size 64kB
Oscillator Type Internal
Number of I/O 96
RAM Size 32kB
Memory Type FLASH, ROM
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM926EJ-S
Peripherals DMA, POR, PWM, WDT
Bit Size 32
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 32b
PWM Channels YES
Number of Timers/Counters 7
Core Architecture ARM
Voltage - I/O 1.8V 3.3V
Number of UART Channels 3
Number of ADC Channels 4
Ethernet 10/100Mbps
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration No
RAM Controllers SDRAM, SRAM
USB USB 2.0 (2)
Additional Interfaces EBI/EMI, I2C, MMC/SD/SDIO, SPI, SSC, UART/USART
Number of SPI Channels 2
Number of Ethernet Channels 1
Dimensions
Height 810μm
Length 10.1mm
Width 10.1mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
