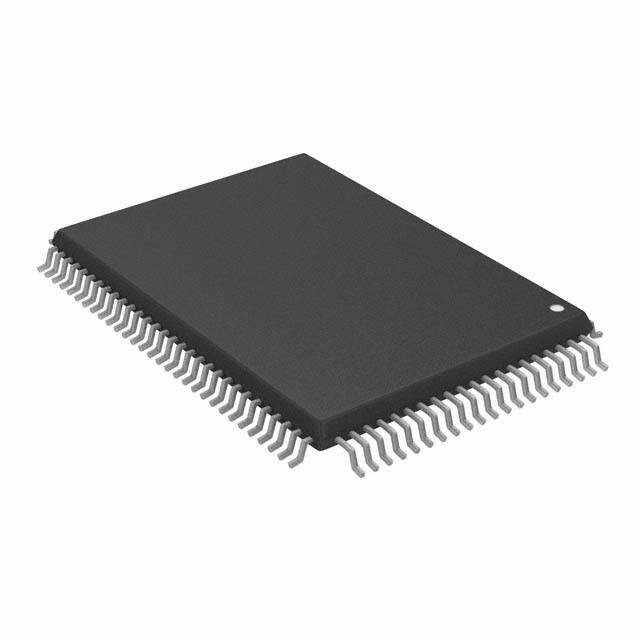

TS80C188EC20
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
IC MPU I186 20MHZ 100MQFP
PDF
/
Buying Options
Total Price: USD $11.25
Unit Price: USD $11.254232
≥1 USD $11.254232
≥10 USD $10.617203
≥100 USD $10.016225
≥500 USD $9.449277
≥1000 USD $8.914406
Inventory: 8074
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case QFP
Technical
Packaging Bulk
Published 1996
JESD-609 Code e0
Part Status Discontinued
Number of Terminations 100
ECCN Code 3A991.A.2
Terminal Finish Tin/Lead (Sn/Pb)
Additional Feature DRAM REFRESH CONTROLLER; 3 PROGRAMMABLE TIMERS; EMULATION HARDWARE
HTS Code 8542.31.00.01
Subcategory Microprocessors
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 5V
Terminal Pitch 0.65mm
Frequency 20MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 100
Qualification Status Not Qualified
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Power Supplies 5V
Temperature Grade INDUSTRIAL
Voltage 5V
uPs/uCs/Peripheral ICs Type MICROPROCESSOR
Supply Current-Max 100mA
Bit Size 16
Access Time 20 μs
Address Bus Width 20
Boundary Scan NO
Low Power Mode YES
External Data Bus Width 8
Format FIXED POINT
Integrated Cache NO
RAM (words) 0
Number of Serial I/Os 2
Number of External Interrupts 9
Number of DMA Channels 4
Dimensions
Height Seated (Max) 3.15mm
Length 20mm
Width 14mm
Compliance
RoHS Status Non-RoHS Compliant
