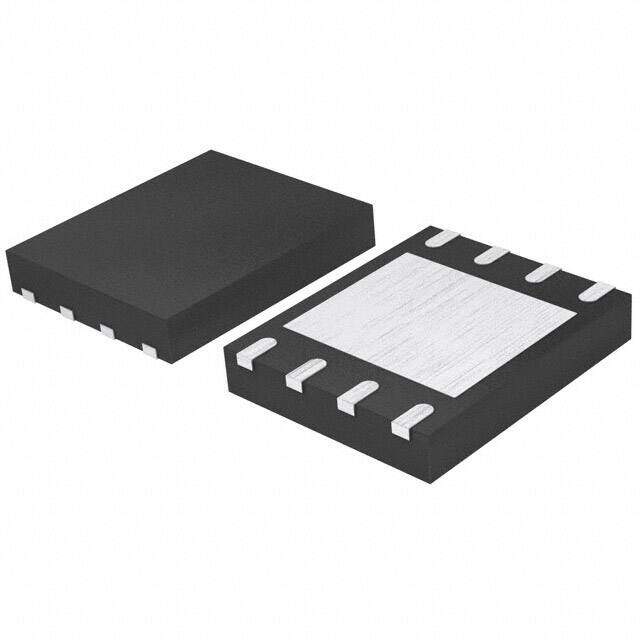

Z8F0213QB005SG image
Favorite
Z8F0213QB005SG image
Favorite

Z8F0213QB005SG

Zilog
RoHS
RoHS RoHS compliant
Package 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 8BIT 2KB FLASH 8QFN
PDF
/
Inventory: 8822
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
Surface Mount YES

Technical

Operating Temperature 0°C~70°C TA
Packaging Tray
Published 2011
Series Encore!? XP?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
Terminal Finish Tin (Sn)
Subcategory Microcontrollers
Max Power Dissipation 220mW
Technology CMOS
Terminal Position DUAL
Supply Voltage 3V
Frequency 5MHz
Base Part Number Z8F0213
Pin Count 8
JESD-30 Code R-PDSO-N8
Operating Supply Voltage 3.3V
Interface IrDA, UART, USART
Memory Size 2kB
Oscillator Type Internal
Number of I/O 6
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor eZ8
Peripherals Brown-out Detect/Reset, LED, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 2KB 2K x 8
Connectivity IrDA, UART/USART
Bit Size 8
Watchdog Timer Yes
Access Time 5 μs
Has ADC NO
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 2
CPU Family Z8

Dimensions

Height Seated (Max) 1mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
