Z51F0811QUX
RoHS
RoHS compliant

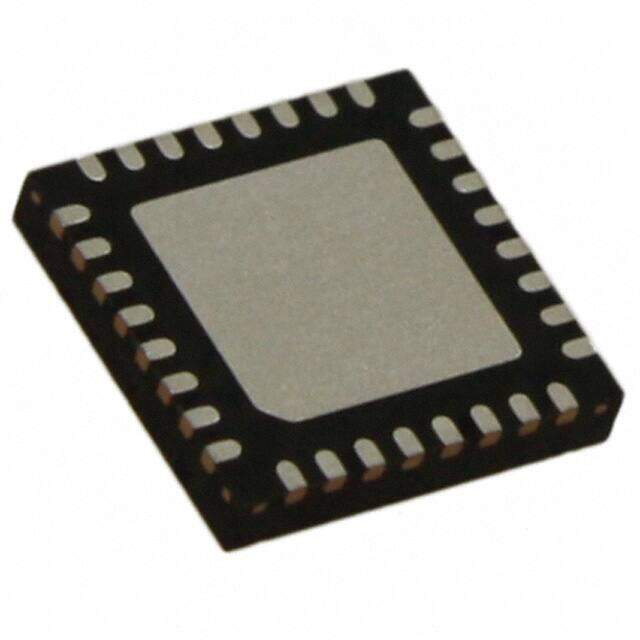

RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 8KB FLASH 32VFQFN
PDF
/
Inventory: 7493
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.8mm
Technical
EEPROM Size 512 x 8
ROM (words) 8192
Number of Timers/Counters 5
DAC Channels NO
PWM Channels YES
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 15x12b
Bit Size 8
Supply Current-Max 1mA
Connectivity I2C, SPI, UART/USART
Program Memory Size 8KB 8K x 8
Core Size 8-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor 8051
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 256 x 8
Number of I/O 30
Oscillator Type Internal
Memory Size 8kB
Interface I2C, SPI, UART, USART
Operating Supply Voltage 5.5V
Qualification Status Not Qualified
JESD-30 Code S-PQCC-N32
Pin Count 32
Base Part Number Z51F0811
Frequency 12MHz
Supply Voltage 5V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Additional Feature ALSO OPREATES 1.8 V AT 8 MHZ
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series Z8051
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 32-VFQFN Exposed Pad
Mounting Type Surface Mount
