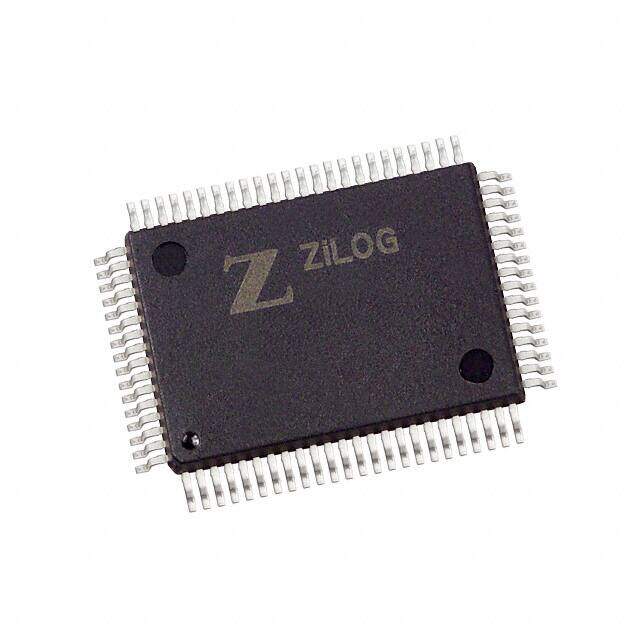

Z16F2811FI20AG
RoHS
RoHS compliant
RoHS compliantPackage 80-BQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 128KB FLASH 80QFP
PDF
/
Inventory: 6690
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 20mm
Height Seated (Max) 3.18mm
Technical
ROM (words) 131072
Address Bus Width 24
Number of Timers/Counters 4
DAC Channels NO
PWM Channels YES
Data Bus Width 16b
DMA Channels YES
Has ADC YES
Access Time 20 μs
Data Converter A/D 12x10b
Bit Size 16
Supply Current-Max 35mA
Connectivity EBI/EMI, I2C, IrDA, LINbus, SPI, UART/USART
Program Memory Size 128KB 128K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Core Processor ZNEO
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 2.7V~3.6V
RAM Size 4K x 8
Number of I/O 60
Oscillator Type Internal
Memory Size 128kB
Interface EBI/EMI, I2C, IrDA, LIN, SPI, UART, USART
Supply Voltage-Min (Vsup) 2.7V
Power Supplies 3/3.3V
Supply Voltage-Max (Vsup) 3.6V
Pin Count 80
Base Part Number Z16F2811
Frequency 20MHz
Terminal Pitch 0.8mm
Supply Voltage 3V
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 550mW
Subcategory Microcontrollers
Terminal Finish Tin (Sn)
Number of Terminations 80
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series Encore!? ZNEO
Published 2011
Packaging Tray
Operating Temperature -40°C~125°C TA
Physical
Number of Pins 80
Surface Mount YES
Package / Case 80-BQFP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
