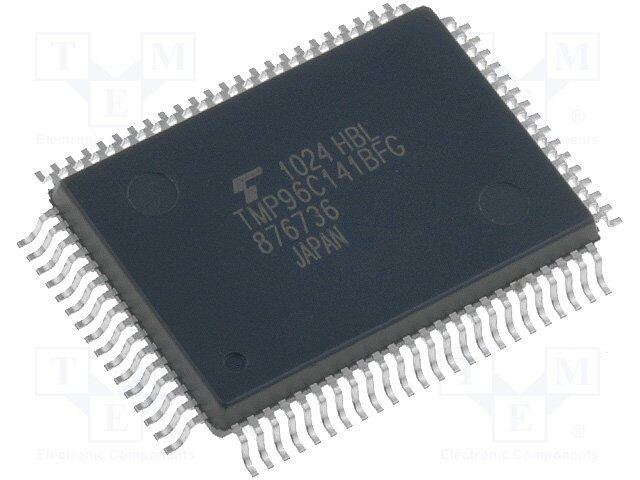

TMP96C141BFG
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 16-bit TLCS-900 CISC ROMLess 5V 80-Pin PQFP
PDF
/
Buying Options
Total Price: USD $40.92
Unit Price: USD $40.92125
≥1 USD $40.92125
≥10 USD $33.5768
≥100 USD $32.52705
≥500 USD $31.47825
≥1000 USD $30.4285
Inventory: 894
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 20mm
Height Seated (Max) 3.05mm
Technical
RAM (bytes) 1024
CPU Family TLCS-900
ROM (words) 0
Address Bus Width 24
Number of Timers/Counters 6
DAC Channels NO
PWM Channels YES
Data Bus Width 16b
DMA Channels YES
Has ADC YES
Frequency (Max) 20MHz
Bit Size 16
Supply Current-Max 50mA
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Memory Type ROMless
RAM Size 1kB
Number of I/O 47
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Interface UART
Temperature Grade OTHER
Power Supplies 5V
Operating Supply Voltage 5V
Pin Count 80
Frequency 20MHz
Terminal Pitch 0.8mm
Supply Voltage 5V
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 80
Published 2003
Physical
Number of Pins 80
Package / Case PQFP
Mount Surface Mount
