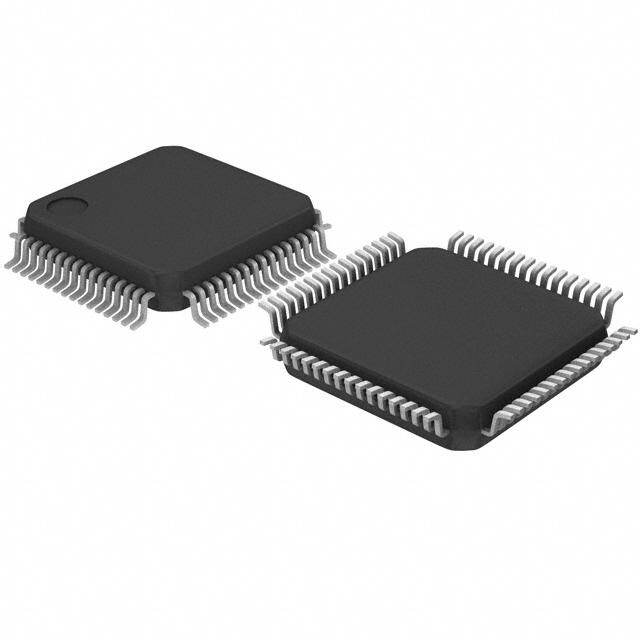

TMP86FS49AUG(JZ)
RoHS
/
Package LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
TOSHIBA TMP86FS49AUG(JZ) 8 Bit Microcontroller, TLCS-870, 16 MHz, 60 KB, 2 KB, 64 Pins, LQFP
PDF
/
Inventory: 8519
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case LQFP
Number of Pins 64
Technical
Packaging Bulk
Published 2005
Termination SMD/SMT
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Frequency 16MHz
Operating Supply Voltage 5V
Interface I2C, Serial, UART, USART
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Memory Size 60kB
Power Dissipation-Max 250mW
Oscillator Type Internal
Number of I/O 56
RAM Size 2kB
Memory Type FLASH
Number of Bits 8
Peripherals PWM, WDT
Frequency (Max) 16MHz
Watchdog Timer Yes
Access Time 16 μs
Data Bus Width 8b
Number of Timers/Counters 6
Density 480 kb
Number of Programmable I/O 56
Number of ADC Channels 16
Number of PWM Channels 4
Compliance
Radiation Hardening No
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
