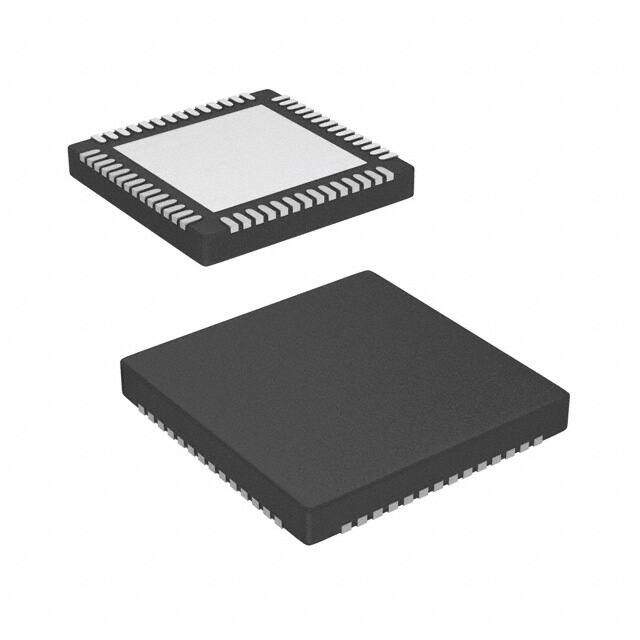

TMS320F28034RSHT
RoHS
RoHS compliant
RoHS compliantPackage 56-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
FLOATING-POINT Lead Free ROHS3Compliant QUAD Microcontroller -40C~105C TA 60MHz 1mm 10K x 16
PDF
/
Buying Options
Total Price: USD $8.8
Unit Price: USD $8.800569
≥1 USD $8.800569
≥260 USD $3.405773
≥520 USD $3.405773
≥1040 USD $3.227276
Inventory: 1728
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 900μm
Width 7mm
Length 7mm
Height 1mm
Technical
Number of External Interrupts 3
Number of Serial I/Os 2
Number of UART Channels 1
RAM (words) 20
Integrated Cache NO
Format FLOATING-POINT
Low Power Mode YES
Boundary Scan YES
Core Architecture C2000
Number of Timers/Counters 3
DAC Channels NO
PWM Channels YES
Data Bus Width 32b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 13x12b
Bit Size 32
Connectivity CANbus, I2C, LINbus, SCI, SPI, UART/USART
Program Memory Size 128KB 64K x 16
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor C28x
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.71V~1.995V
RAM Size 10K x 16
Number of I/O 26
Oscillator Type Internal
Memory Size 128kB
Interface CAN, I2C, LIN, SCI, SPI, UART, USART
Operating Supply Voltage 3.3V
Pin Count 56
Base Part Number 320F28034
Frequency 60MHz
Terminal Pitch 0.4mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 56
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series C2000? C28x Piccolo?
Packaging Tray
Operating Temperature -40°C~105°C TA
Physical
Number of Pins 56
Package / Case 56-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
