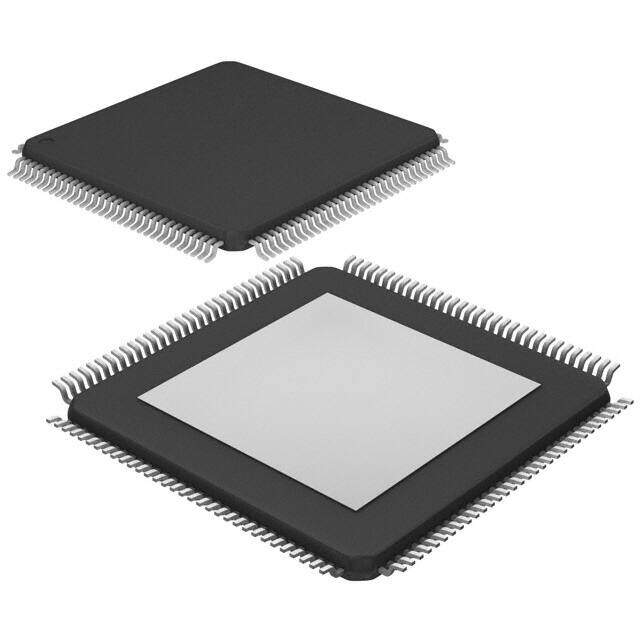

TM4C129DNCPDTI3
RoHS
RoHS compliant
RoHS compliantPackage 128-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1MB FLASH 128TQFP
PDF
/
Buying Options
Total Price: USD $16.93
Unit Price: USD $16.9312
≥1 USD $16.9312
≥10 USD $15.56192
≥100 USD $14.917056
≥500 USD $13.142994
≥1000 USD $12.497954
≥3000 USD $11.691618
Inventory: 515
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 128-TQFP
Number of Pins 128
Weight 503.487531mg
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series Tiva? C
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 128
Max Power Dissipation 904mW
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.2V
Frequency 120MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number M4C129
Operating Supply Voltage 3.3V
Interface CAN, Ethernet, I2C, IrDA, SPI, UART, USB
Memory Size 1MB
Oscillator Type Internal
Number of I/O 90
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 2.97V~3.63V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Number of Bits 12
Core Processor ARM? Cortex?-M4F
Peripherals Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 1MB 1M x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, QEI, SPI, SSI, UART/USART, USB OTG
Bit Size 32
Data Converter A/D 20x12b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 32b
PWM Channels YES
Core Architecture ARM
EEPROM Size 6K x 8
Boundary Scan YES
Low Power Mode NO
Number of A/D Converters 2
Number of Programmable I/O 98
Format FIXED-POINT
Integrated Cache YES
RAM (words) 256
Number of UART Channels 8
Number of ADC Channels 20
Number of Serial I/Os 5
Max Junction Temperature (Tj) 105°C
Number of Timers 8
Number of I2C Channels 10
Ambient Temperature Range High 85°C
Number of SPI Channels 4
Number of Ethernet Channels 1
Dimensions
Height 1.2mm
Length 14mm
Width 14mm
Thickness 1mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
