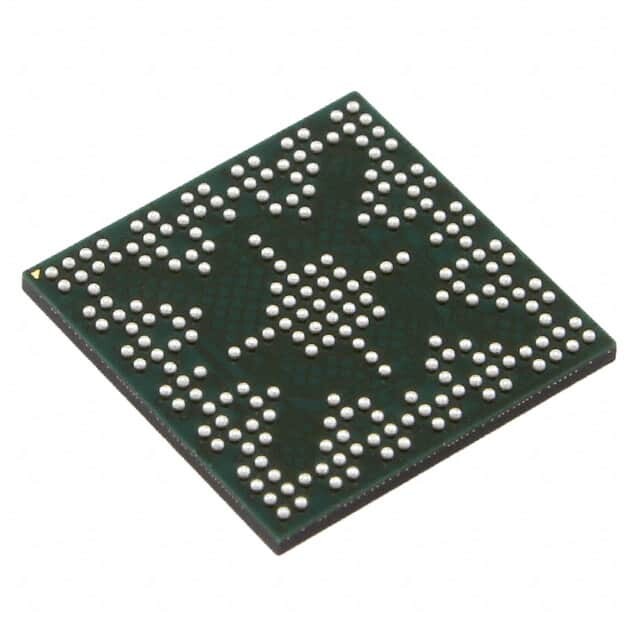

TM4C1290NCZADI3
RoHS
RoHS compliant
RoHS compliantPackage 212-VFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1MB FLASH 212NFBGA
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 2907
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mounting Type Surface Mount
Package / Case 212-VFBGA
Surface Mount YES
Number of Pins 212
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series Tiva? C
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 212
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.2V
Terminal Pitch 0.5mm
Frequency 120MHz
Base Part Number M4C1290
Supply Voltage-Max (Vsup) 1.32V
Supply Voltage-Min (Vsup) 1.14V
Oscillator Type Internal
Number of I/O 140
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 2.97V~3.63V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Number of Bits 12
Core Processor ARM? Cortex?-M4F
Peripherals Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 1MB 1M x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, QEI, SPI, SSI, UART/USART, USB OTG
Supply Current-Max 100.1mA
Bit Size 32
Data Converter A/D 24x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels NO
Density 8 Mb
EEPROM Size 6K x 8
CPU Family CORTEX-M4F
Boundary Scan YES
Low Power Mode YES
Number of A/D Converters 24
Format FLOATING-POINT
Integrated Cache NO
RAM (words) 256
Number of UART Channels 8
Number of Timers 8
Dimensions
Height Seated (Max) 1mm
Length 10mm
Width 10mm
Thickness 650μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
