TM4C123GE6PMI7R
RoHS
RoHS compliant

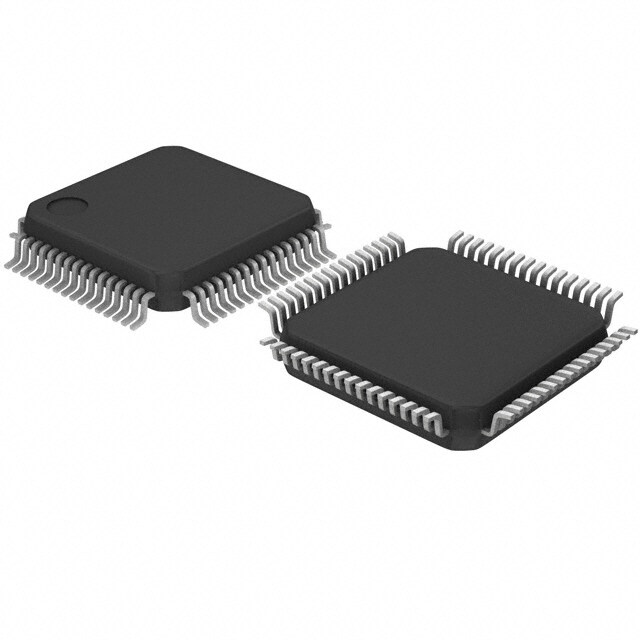

RoHS compliantPackage 64-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
FLOATING-POINT Lead Free ROHS3Compliant GULL WING Microcontroller 1.23.3V -40C~85C TA 54.9mA 80MHz
PDF
/
Inventory: 7567
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
PWM Channels YES
DAC Channels NO
ROM (words) 131072
Core Architecture ARM
EEPROM Size 2K x 8
CPU Family CORTEX-M4F
Boundary Scan YES
Low Power Mode YES
Number of Programmable I/O 43
Format FLOATING-POINT
Integrated Cache YES
RAM (words) 32
Number of UART Channels 8
Number of Serial I/Os 5
Number of Timers 12
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 12x12b
Bit Size 32
Supply Current-Max 54.9mA
Connectivity CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG
Program Memory Size 128KB 128K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT
Core Processor ARM? Cortex?-M4F
Number of Bits 12
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.08V~3.63V
RAM Size 32K x 8
Number of I/O 43
Oscillator Type Internal
Memory Size 128kB
Interface CAN, I2C, IrDA, SPI, UART, USART, USB
Power Supplies 1.23.3V
Supply Voltage-Max (Vsup) 1.32V
Qualification Status Not Qualified
Pin Count 64
Base Part Number M4C123
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 80MHz
Terminal Pitch 0.5mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Tiva? C
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Dimensions
Height 1.6mm
Length 10mm
Width 10mm
Thickness 1.4mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Number of Pins 64
Surface Mount YES
Package / Case 64-LQFP
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
