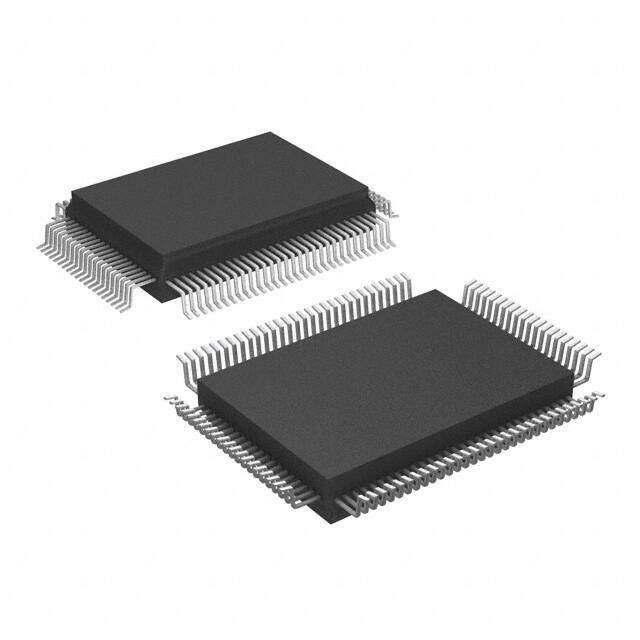

PMS430E337AHFD
RoHS
RoHS compliant
RoHS compliantPackage 100-BCQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
16-bit Microcontrollers - MCU 16B Ultra-Low-Pwr Microcontroller
PDF
/
Buying Options
Total Price: USD $22.53
Unit Price: USD $22.52925
≥1 USD $22.52925
≥10 USD $18.4851
≥100 USD $17.9075
≥500 USD $17.3299
≥1000 USD $16.7523
Inventory: 1465
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
ROM Programmability UVPROM
Number of Timers/Counters 2
DAC Channels NO
PWM Channels YES
Data Bus Width 16b
DMA Channels NO
Has ADC YES
Data Converter Slope A/D
Bit Size 16
Connectivity SPI, UART/USART
Program Memory Size 32KB 32K x 8
Core Size 16-Bit
Program Memory Type EPROM, UV
Peripherals LCD, POR, PWM, WDT
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.5V~5.5V
Memory Type EPROM
RAM Size 1K x 8
Number of I/O 40
Oscillator Type Internal
Memory Size 32kB
Interface SPI, UART, USART
Supply Voltage-Min (Vsup) 4.5V
Temperature Grade INDUSTRIAL
Power Supplies 3/5V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 100
Base Part Number 430E337
Frequency 8MHz
Terminal Pitch 0.65mm
Supply Voltage 5V
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Min Operating Temperature 25°C
Number of Terminations 100
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series MSP430
Packaging Tray
Physical
Number of Pins 100
Surface Mount YES
Package / Case 100-BCQFP
Mounting Type Surface Mount
