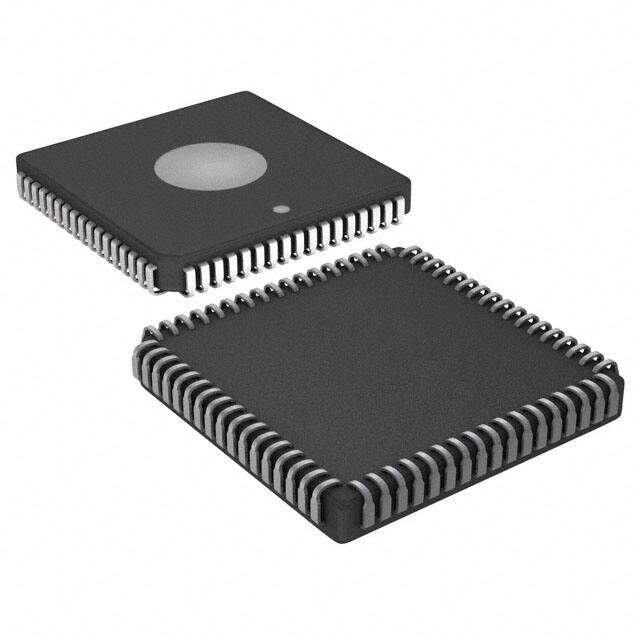

PMS430E315FZ
RoHS
RoHS compliant
RoHS compliantPackage 68-LCC (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 16KB EPROM 68JLCC
PDF
/
Inventory: 3137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 4.57mm
Technical
ROM Programmability UVPROM
ROM (words) 16384
Number of Timers/Counters 2
DAC Channels NO
PWM Channels NO
Data Bus Width 16b
DMA Channels NO
Has ADC YES
Data Converter Slope A/D
Bit Size 16
Connectivity UART/USART
Program Memory Size 16KB 16K x 8
Core Size 16-Bit
Program Memory Type EPROM, UV
Peripherals LCD, POR, WDT
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
Memory Type EPROM
RAM Size 512 x 8
Speed 3.3 MHz
Number of I/O 14
Oscillator Type Internal
Memory Size 16kB
Interface UART, USART
Temperature Grade INDUSTRIAL
Power Supplies 3/5V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 68
Base Part Number 430E315
Frequency 8MHz
Supply Voltage 5V
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 68
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Series MSP430
Packaging Tube
Physical
Number of Pins 68
Surface Mount YES
Package / Case 68-LCC (J-Lead)
Mounting Type Surface Mount
