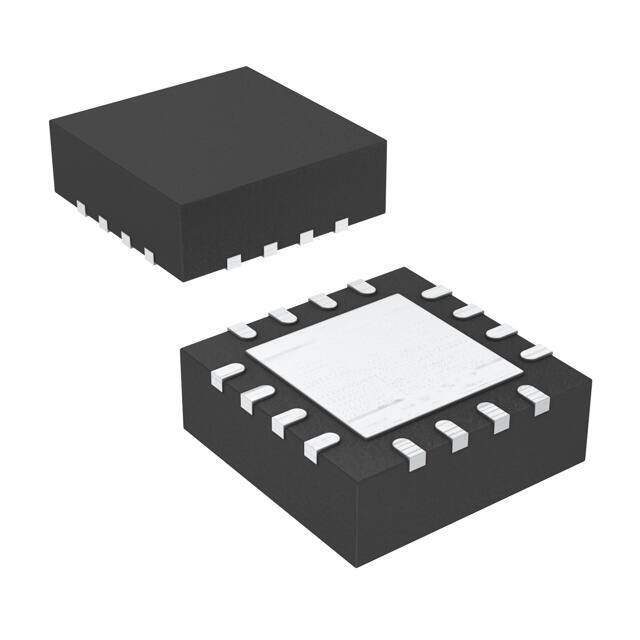

MSP430G2121IRSA16T
RoHS
RoHS compliant
RoHS compliantPackage 16-VQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 1KB FLASH 16QFN
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.25576
≥100 USD $1.18448
≥500 USD $1.009008
Inventory: 531
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 900μm
Width 4mm
Length 4mm
Height 1mm
Technical
RAM (bytes) 128
Number of UART Channels 0
Integrated Cache NO
Format FIXED-POINT
Low Power Mode YES
Boundary Scan YES
Core Architecture RISC
Number of Timers/Counters 1
DAC Channels NO
PWM Channels YES
Data Bus Width 16b
DMA Channels YES
Has ADC NO
Watchdog Timer Yes
Bit Size 16
Connectivity I2C, SPI
Program Memory Size 1KB 1K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor MSP430
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 128 x 8
Number of I/O 10
Oscillator Type Internal
Memory Size 1kB
Interface I2C, SPI
Power Supplies 2/3.3V
Supply Voltage-Max (Vsup) 3.6V
Pin Count 16
Frequency 16MHz
Supply Voltage 2.2V
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 16
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e4
Series MSP430G2xx
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 16
Package / Case 16-VQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
