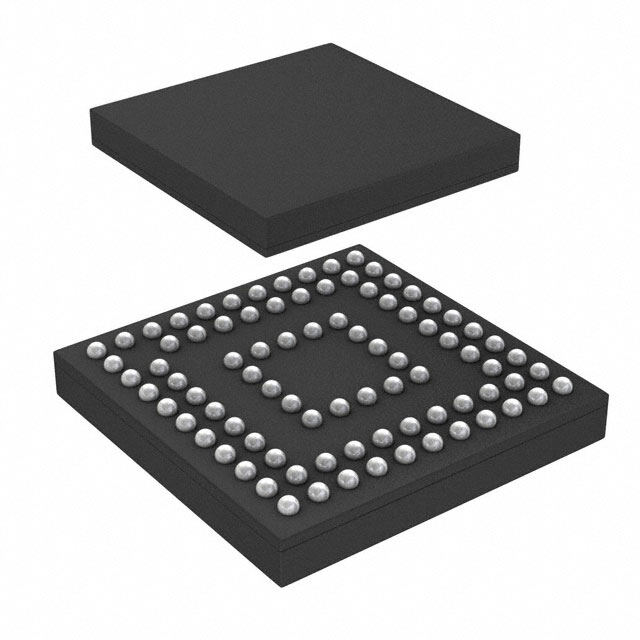

MSP430FR5992IZVWR
RoHS
RoHS compliant
RoHS compliantPackage 87-VFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ROHS3Compliant BALL BOTTOM CMOS Microcontroller -40C~85C TA 16MHz 1mm 8K x 8
PDF
/
Buying Options
Total Price: USD $27.1
Unit Price: USD $27.09685
≥1 USD $27.09685
≥10 USD $22.23285
≥100 USD $21.5384
≥500 USD $20.84395
≥1000 USD $20.14855
Inventory: 1234
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 640μm
Width 6mm
Length 6mm
Height 1mm
Technical
Number of UART Channels 4
ROM (words) 131072
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 20x12b
Bit Size 16
Connectivity I2C, IrDA, SPI, UART/USART
Program Memory Size 128KB 128K x 8
Core Size 16-Bit
Program Memory Type FRAM
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Core Processor CPUXV2
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 8K x 8
Speed 16MHz
Number of I/O 68
Oscillator Type Internal/External
Supply Voltage-Min (Vsup) 1.8V
Supply Voltage-Max (Vsup) 3.6V
Base Part Number MSP430
Terminal Pitch 0.5mm
Supply Voltage 3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 87
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series MSP430? FRAM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 87
Surface Mount YES
Package / Case 87-VFBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
