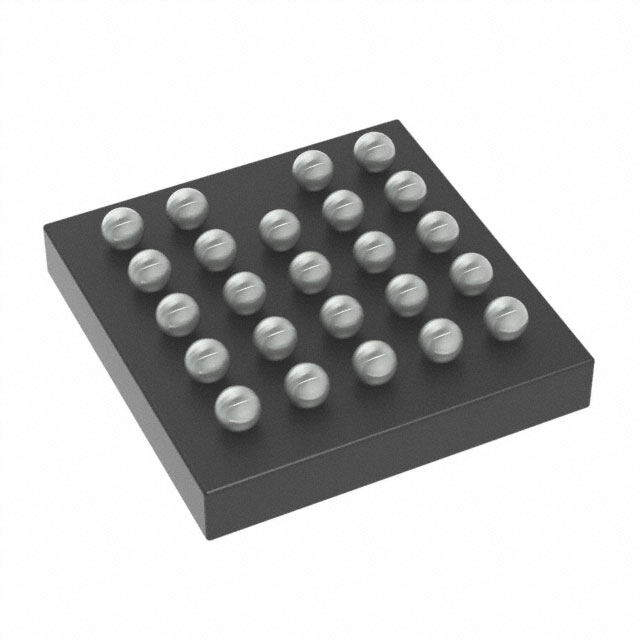

MSP430FR2632IYQWR image
Favorite
MSP430FR2632IYQWR image
Favorite

MSP430FR2632IYQWR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 24-UFBGA, DSBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 16BIT 8.5KB FRAM 24DSBGA
PDF
/
Buying Options
Total Price: USD $2.84
Unit Price: USD $2.8386
≥1 USD $2.8386
≥10 USD $2.32845
≥100 USD $2.25625
≥500 USD $2.1831
≥1000 USD $2.1109
Inventory: 53947
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)

Physical

Mounting Type Surface Mount
Package / Case 24-UFBGA, DSBGA
Surface Mount YES
Number of Pins 24

Technical

Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series MSP430? FRAM
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 3V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.8V
Oscillator Type Internal
Number of I/O 17
Speed 16MHz
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor MSP430
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type FRAM
Core Size 16-Bit
Program Memory Size 8.5KB 8.5K x 8
Connectivity I2C, IrDA, SCI, SPI, UART/USART
Bit Size 16
Data Converter A/D 8x10b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels NO
ROM (words) 8704
Number of UART Channels 2

Dimensions

Height 0m
Length 2.2mm
Width 2.2mm
Thickness 415μm

Compliance

RoHS Status ROHS3 Compliant
