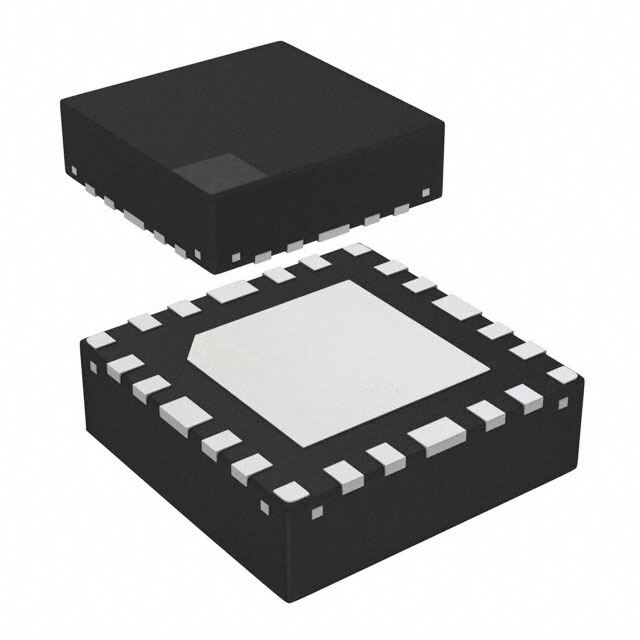

MSP430FR2110IRLLT
RoHS
RoHS compliant
RoHS compliantPackage 24-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
Mixed-Signal Microcontroller 16-Bit MSP430 16MHz 2 Kbyte ROM/1 Kbyte RAM 24-Pin VQFN T/R
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.1176
≥1 USD $1.1176
≥10 USD $0.9988
≥100 USD $0.948288
≥500 USD $0.778888
Inventory: 839
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 850μm
Width 3mm
Length 3mm
Height 1mm
Technical
Number of UART Channels 1
Integrated Cache NO
Low Power Mode YES
Boundary Scan YES
ROM (words) 2048
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 8x10b
Bit Size 16
Connectivity IrDA, SCI, SPI, UART/USART
Program Memory Size 2KB 2K x 8
Core Size 16-Bit
Program Memory Type FRAM
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor MSP430
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 1K x 8
Number of I/O 12
Oscillator Type Internal
Supply Voltage-Max (Vsup) 3.6V
Frequency 16MHz
Terminal Pitch 0.4mm
Supply Voltage 3V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series MSP430? FRAM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 24
Surface Mount YES
Package / Case 24-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
