MSP430FG4617IZQW image
Favorite
MSP430FG4617IZQW image
Favorite

MSP430FG4617IZQW

Texas Instruments
RoHS
RoHS RoHS compliant
Package 113-VFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 16BIT 92KB FLASH 113BGA
PDF
/
Inventory: 9879
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 7mm
Height Seated (Max) 1mm

Technical

Number of Programmable I/O 80
Number of Timers/Counters 2
DAC Channels YES
PWM Channels YES
Data Bus Width 16b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 12x12b; D/A 2x12b
Bit Size 16
Connectivity I2C, IrDA, LINbus, SCI, SPI, UART/USART
Program Memory Size 92KB 92K x 8 + 256B
Core Size 16-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Core Processor CPUX
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 8K x 8
Number of I/O 80
Oscillator Type Internal
Memory Size 92kB
Interface I2C, IrDA, LIN, SCI, SPI, UART, USART
Supply Voltage-Max (Vsup) 3.6V
Pin Count 113
Base Part Number MSP430
Frequency 8MHz
Terminal Pitch 0.5mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Additional Feature ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 3MHZ
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 113
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Series MSP430x4xx
Packaging Tray
Operating Temperature -40°C~85°C TA

Physical

Number of Pins 113
Surface Mount YES
Package / Case 113-VFBGA
Mounting Type Surface Mount

Alternative Model

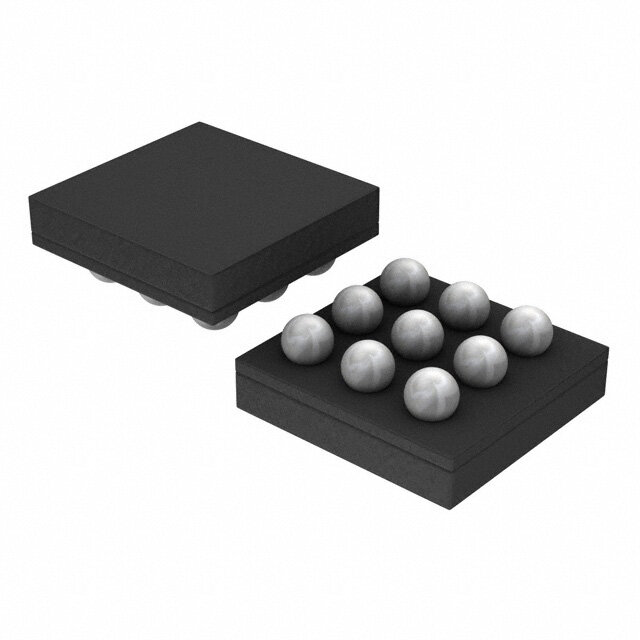

CYPD2704-09FNXIT
