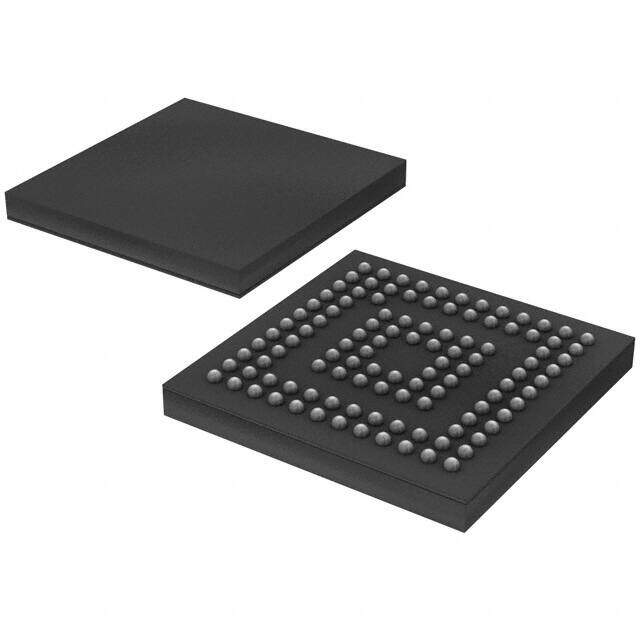

MSP430F5634IZQWR
RoHS
RoHS compliant
RoHS compliantPackage 113-VFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
16-bit Microcontrollers - MCU Mixed Signal MCU
PDF
/
Inventory: 7234
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 113-VFBGA
Surface Mount YES
Number of Pins 113
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series MSP430F5xx
JESD-609 Code e1
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 113
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature OPERATES AT 1.8V SUPPLY AT 8MHZ
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 3V
Terminal Pitch 0.5mm
Frequency 20MHz
Base Part Number MSP430
Pin Count 113
Supply Voltage-Max (Vsup) 3.6V
Interface I2C, IrDA, LIN, SCI, SPI, UART, USART, USB
Memory Size 192kB
Oscillator Type Internal
Number of I/O 74
RAM Size 18K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor CPUXV2
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 192KB 192K x 8
Connectivity I2C, IrDA, LINbus, SCI, SPI, UART/USART, USB
Bit Size 16
Data Converter A/D 16x12b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 16b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 4
ROM (words) 196608
Number of A/D Converters 16
Number of Programmable I/O 74
Number of UART Channels 2
Dimensions
Height Seated (Max) 1mm
Length 7mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
