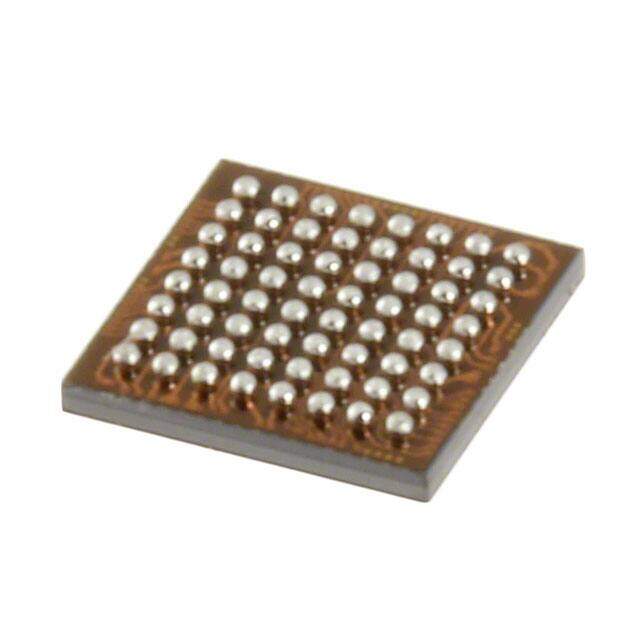

MSP430F5229IYFFR
RoHS
RoHS compliant
RoHS compliantPackage 64-UFBGA, DSBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
16-bit Microcontrollers - MCU Mixed Signal MCU
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.21255
≥1 USD $2.21255
≥10 USD $1.81545
≥100 USD $1.75845
≥500 USD $1.70145
≥1000 USD $1.6454
Inventory: 1691
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 400μm
Width 0m
Length 0m
Height 625μm
Technical
Number of Serial I/Os 2
Number of UART Channels 2
RAM (words) 8
Integrated Cache NO
Format FIXED-POINT
Number of A/D Converters 10
Low Power Mode YES
Boundary Scan YES
Number of Timers/Counters 4
DAC Channels NO
PWM Channels YES
Data Bus Width 16b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 12x10b
Bit Size 16
Supply Current-Max 11mA
Connectivity I2C, IrDA, SCI, SPI, UART/USART
Program Memory Size 128KB 128K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Core Processor CPUXV2
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 8K x 8
Number of I/O 31
Oscillator Type Internal
Memory Size 128kB
Interface I2C, IrDA, SCI, SPI, UART, USART
Supply Voltage-Max (Vsup) 3.6V
Pin Count 64
Base Part Number MSP430
Frequency 25MHz
Terminal Pitch 0.5mm
Supply Voltage 3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Additional Feature IT ALSO OPERATES IN 1.8V AT 8MHZ
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 64
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series MSP430F5xx
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 64
Surface Mount YES
Package / Case 64-UFBGA, DSBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
