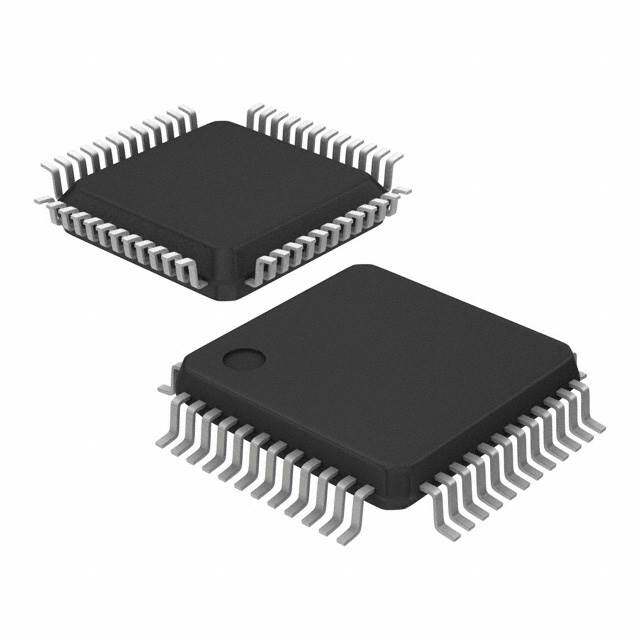

MSP430F1491IPMRG4
RoHS
/
Package LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 60KB FLASH 64LQFP
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.104398
≥1 USD $2.104398
≥10 USD $1.985287
≥100 USD $1.872908
≥500 USD $1.766901
≥1000 USD $1.666887
Inventory: 4310
Minimum: 1
-
+
Technical Details
Technical
Oscillator Type Internal
Number of I/O 48
RAM Size 2kB
Memory Type FLASH
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Peripherals POR, PWM, WDT
Supply Current-Max 0.56mA
Bit Size 16
Frequency (Max) 8MHz
Watchdog Timer Yes
Has ADC YES
DMA Channels NO
Data Bus Width 16b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 2
ROM (words) 61440
Core Architecture MSP430
On Chip Program ROM Width 8
Boundary Scan YES
Low Power Mode YES
Format FIXED-POINT
Integrated Cache NO
Number of Serial I/Os 2
On Chip Data RAM Width 8
Number of GPIO 48
Memory Size 60kB
Min Supply Voltage 1.8V
Max Supply Voltage 3.6V
Interface SPI, UART, USART
Temperature Grade INDUSTRIAL
Pin Count 64
Frequency 8MHz
Terminal Pitch 0.5mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Additional Feature ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4.15 MHZ
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3
JESD-609 Code e4
Packaging Tape & Reel (TR)
Dimensions
Height Seated (Max) 1.6mm
Length 10mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Weight 342.689036mg
Number of Pins 64
Surface Mount YES
Package / Case LQFP
