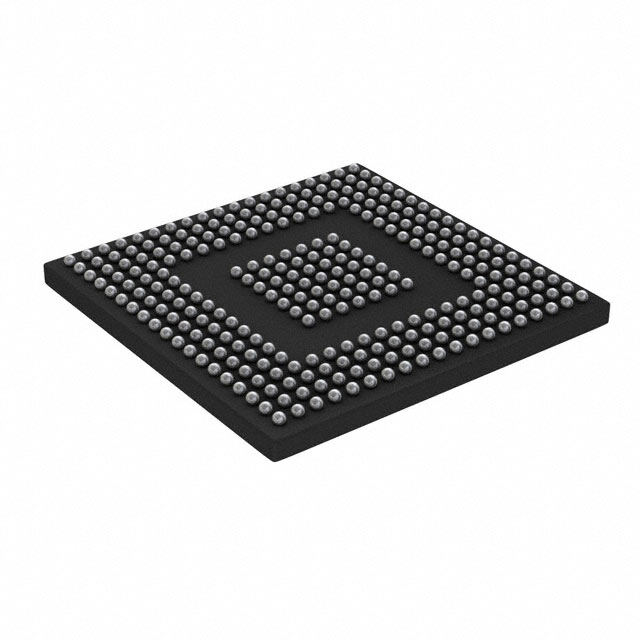

F28M36P63C2ZWTS
RoHS
RoHS compliant
RoHS compliantPackage 289-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-bit C2000 ARM Cortex M3 RISC 1024KB Flash 1.2V/1.8V/3.3V 289-Pin BGA
PDF
/
Buying Options
Total Price: USD $239.57
Unit Price: USD $239.5653
≥1 USD $239.5653
≥10 USD $214.78265
Inventory: 704
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 900μm
Width 16mm
Length 16mm
Height 1.4mm
Technical
Number of GPIO 124
Number of External Interrupts 3
Number of Serial I/Os 7
Number of UART Channels 6
RAM (words) 232
Integrated Cache NO
Format FLOATING-POINT
Number of A/D Converters 24
Low Power Mode YES
Boundary Scan YES
CPU Family CORTEX-M3
Core Architecture ARM
Density 12 Mb
Number of Timers/Counters 4
DAC Channels NO
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 24x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG
Program Memory Size 512KB/1MB
Core Size 32-Bit Dual-Core
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Core Processor C28x/ARM? Cortex?-M3
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.14V~3.63V
RAM Size 232KB
Number of I/O 142
Oscillator Type Internal
Memory Size 512kB
Interface CAN, EBI/EMI, Ethernet, I2C, IrDA, SCI, SPI, UART, USART, USB
Supply Voltage-Max (Vsup) 1.32V
Base Part Number F28M36P63
Frequency 125MHz
Terminal Pitch 0.8mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 289
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series C2000? C28x + ARM? Cortex? M3 Concerto?
Packaging Tray
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 289
Package / Case 289-LFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
