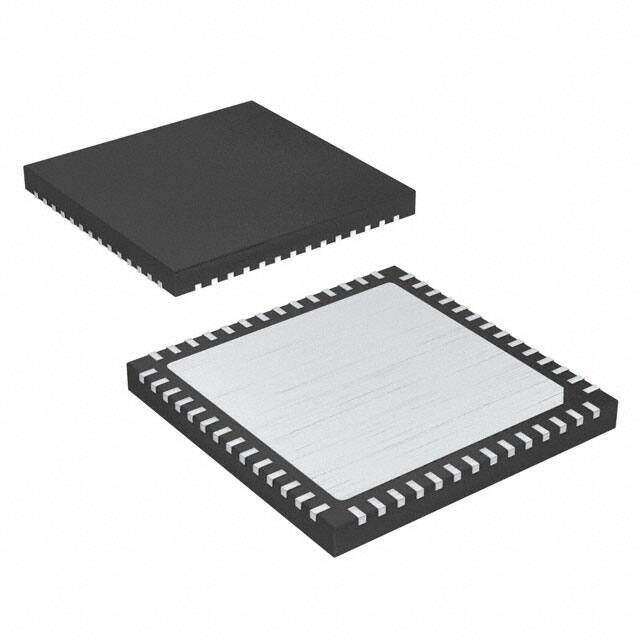

F280041RSHSR
RoHS
RoHS compliant
RoHS compliantPackage 56-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
POTENZA
PDF
/
Buying Options
Total Price: USD $6.07
Unit Price: USD $6.072
≥1 USD $6.072
≥10 USD $5.48416
≥100 USD $5.229312
≥500 USD $4.540536
≥1000 USD $4.336464
≥3000 USD $3.953822
Inventory: 1262
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1mm
Technical
Number of DMA Channels 6
On Chip Program ROM Width 16
ROM (words) 65536
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 12x12b; D/A 2x12b
Bit Size 32
Connectivity CANbus, I2C, LINbus, SCI, SPI, UART/USART
Program Memory Size 128KB 64K x 16
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 100MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor C28x
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.14V~1.32V
RAM Size 50K x 16
Speed 100MHz
Number of I/O 25
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.14V
Supply Voltage-Max (Vsup) 1.26V
JESD-30 Code S-PQCC-N56
Base Part Number F280041
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 56
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series C2000? C28x Piccolo?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 56-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
