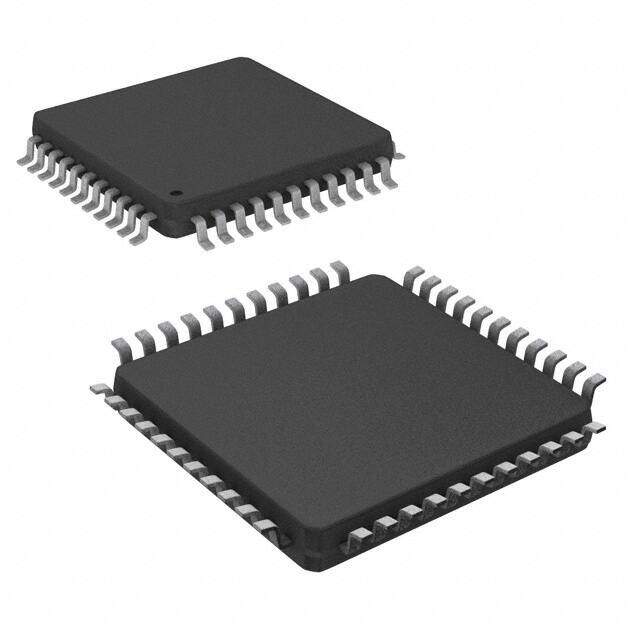

COP8SGE7VEJ8/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 44-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 8KB OTP 44PQFP
PDF
/
Buying Options
Total Price: USD $19.04
Unit Price: USD $19.04275
≥1 USD $19.04275
≥10 USD $15.62465
≥100 USD $15.13635
≥500 USD $14.64805
≥1000 USD $14.15975
Inventory: 1408
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 10mm
Height Seated (Max) 1.6mm
Technical
Number of Programmable I/O 24
ROM (words) 8192
Number of Timers/Counters 4
DAC Channels NO
PWM Channels YES
Data Bus Width 8b
DMA Channels NO
Has ADC NO
Bit Size 8
Supply Current-Max 9mA
Connectivity Microwire/Plus (SPI), UART/USART
Program Memory Size 8KB 8K x 8
Core Size 8-Bit
Program Memory Type OTP
Peripherals POR, PWM, WDT
Core Processor COP8
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
Memory Type EPROM
RAM Size 256 x 8
Number of I/O 40
Oscillator Type Internal
Memory Size 8kB
Interface SPI, UART, USART
Supply Voltage-Min (Vsup) 2.7V
Power Supplies 3/5V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 44
Base Part Number COP8SGE7
Frequency 15MHz
Terminal Pitch 0.8mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
ECCN Code EAR99
Number of Terminations 44
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
Series COP8? 8SG
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 44
Surface Mount YES
Package / Case 44-LQFP
Mounting Type Surface Mount
