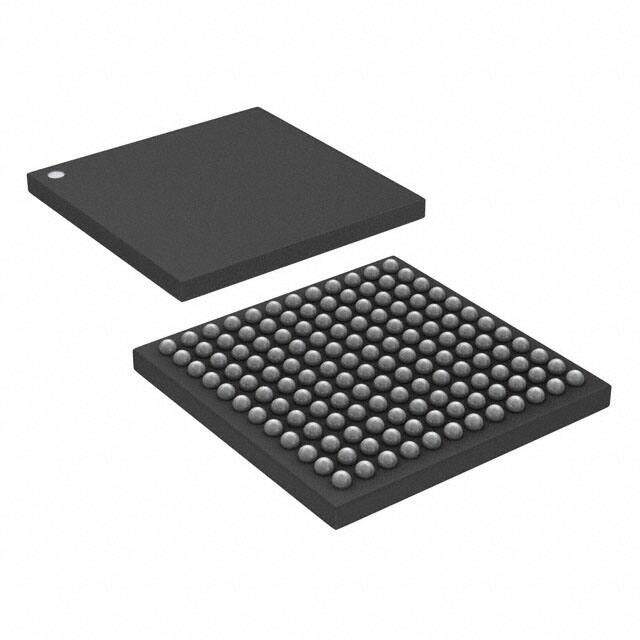

STR710FZ2H6TR
RoHS
RoHS compliant
RoHS compliantPackage 144-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 256KB FLSH 144LFBGA
PDF
/
Buying Options
Total Price: USD $199.64
Unit Price: USD $199.63775
≥1 USD $199.63775
≥10 USD $178.9857
Inventory: 804
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 144-LFBGA
Number of Pins 144
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series STR7
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Frequency 66MHz
Base Part Number STR710
Pin Count 144
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.6V
Interface CAN, EBI/EMI, I2C, SPI, UART, USART, USB
Memory Size 256kB
Oscillator Type Internal
Number of I/O 48
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 3V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM7?
Peripherals PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 256KB 256K x 8 + 16K
Connectivity CANbus, EBI/EMI, HDLC, I2C, SmartCard, SPI, UART/USART, USB
Supply Current-Max 100mA
Bit Size 32
Data Converter A/D 4x12b
Has ADC YES
DMA Channels NO
Data Bus Width 32b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 4
Address Bus Width 24
ROM (words) 65536
Core Architecture ARM
On Chip Program ROM Width 32
Dimensions
Height Seated (Max) 1.7mm
Length 10mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
