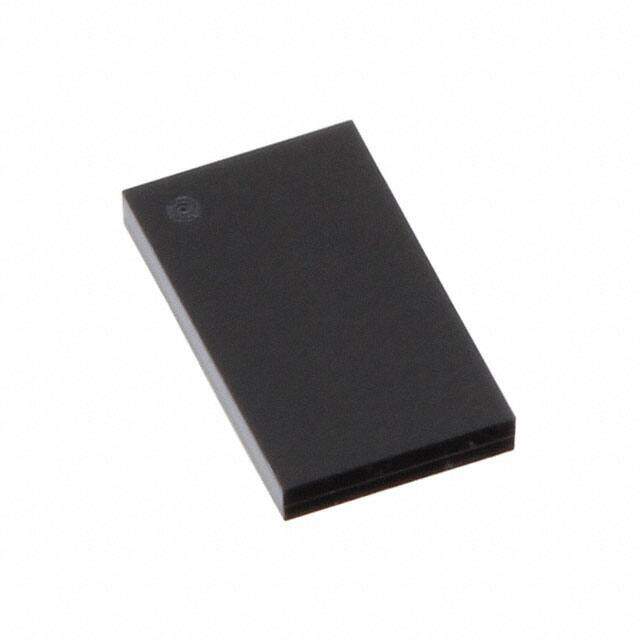

STM8L152K8Y6TR
RoHS
RoHS compliant
RoHS compliantPackage 32-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
STMICROELECTRONICS STM8L152K8Y6TR 8 Bit Microcontroller, STM8, 16 MHz, 64 KB, 4 KB, 32 Pins, WLCSPNew
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7544
≥1 USD $2.7544
≥10 USD $2.4728
≥100 USD $2.33728
≥500 USD $2.02576
≥1000 USD $1.92185
≥3000 USD $1.724466
Inventory: 1375
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 1.913mm
Technical
EEPROM Size 2K x 8
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 20x12b; D/A 1x12b
Bit Size 32
Connectivity I2C, IrDA, SPI, UART/USART
Program Memory Size 64KB 64K x 8
Core Size 8-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT
Core Processor STM8
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 4K x 8
Number of I/O 28
Oscillator Type Internal
Memory Size 64kB
Supply Voltage-Min (Vsup) 1.8V
Supply Voltage-Max (Vsup) 3.6V
Base Part Number STM8L152
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 16MHz
Terminal Pitch 0.4mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series STM8L EnergyLite
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 32
Surface Mount YES
Package / Case 32-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 8 Weeks
