STM8AF6246UCX
RoHS
RoHS compliant

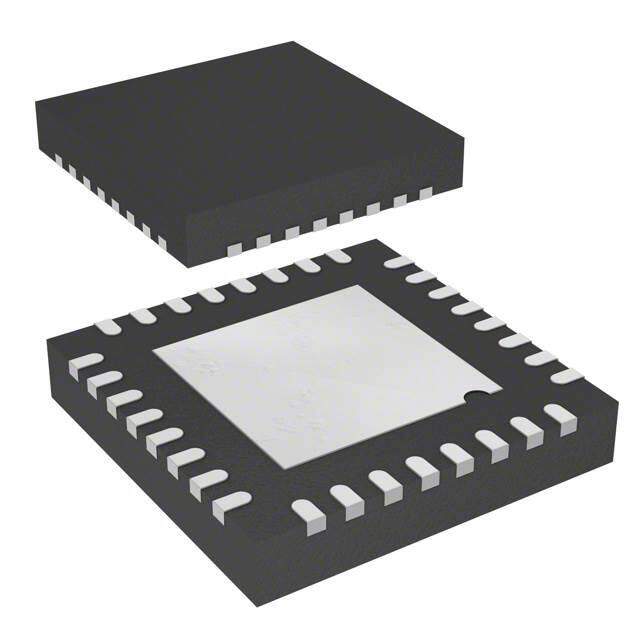

RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 16KB FLASH 32VFQFPN
PDF
/
Buying Options
Total Price: USD $2.58
Unit Price: USD $2.5784
≥1 USD $2.5784
≥10 USD $2.31528
≥100 USD $2.189088
≥500 USD $1.89728
≥1000 USD $1.799987
≥3000 USD $1.615134
Inventory: 11865
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Surface Mount YES
Number of Pins 32
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, STM8A
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
ECCN Code EAR99
Subcategory Microcontrollers
Max Power Dissipation 200mW
Technology CMOS
Terminal Position QUAD
Supply Voltage 5V
Frequency 16MHz
Base Part Number STM8AF
Pin Count 32
Supply Voltage-Min (Vsup) 3V
Interface I2C, LIN, SPI, UART, USART
Memory Size 16kB
Oscillator Type Internal
Number of I/O 25
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor STM8A
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 16KB 16K x 8
Connectivity I2C, LINbus, SPI, UART/USART
Supply Current-Max 14mA
Bit Size 8
Data Converter A/D 7x10b
Watchdog Timer Yes
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 5
ROM (words) 16384
EEPROM Size 512 x 8
Dimensions
Height Seated (Max) 1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
