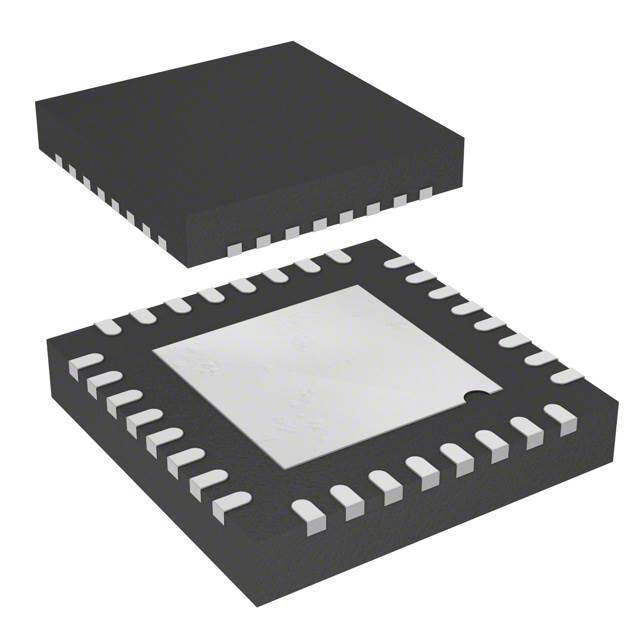

STM8AF6226UAY image
Favorite
STM8AF6226UAY image
Favorite

STM8AF6226UAY

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 8BIT 8KB FLASH
PDF
/
Inventory: 4492
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)

Physical

Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Surface Mount YES

Technical

Operating Temperature -40°C~85°C TA
Packaging Tray
Series Automotive, AEC-Q100, STM8A
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3V
Terminal Pitch 0.5mm
Base Part Number STM8AF
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 3.3V
Oscillator Type Internal
Number of I/O 28
Speed 16MHz
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor STM8A
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency 16MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 8KB 8K x 8
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 8
Data Converter A/D 5x10b
Has ADC YES
DMA Channels NO
PWM Channels YES
EEPROM Size 640 x 8

Dimensions

Length 5mm
Width 5mm

Compliance

RoHS Status ROHS3 Compliant
