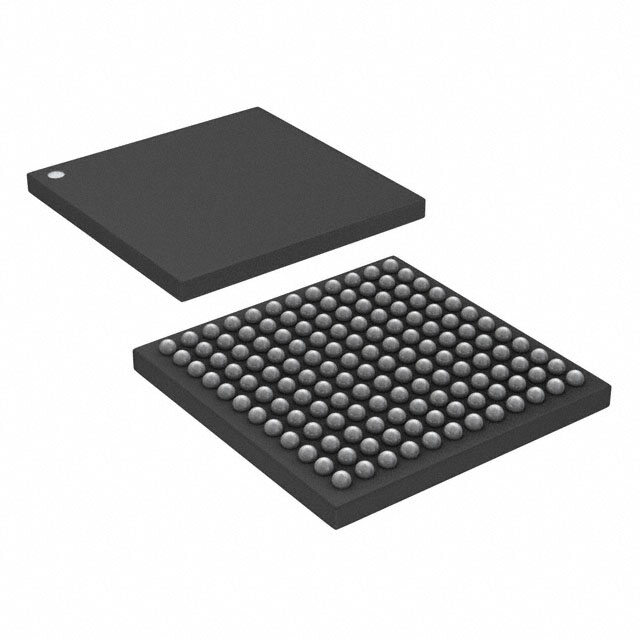

STM32L4S5ZIY6TR
RoHS
RoHS compliant
RoHS compliantPackage 144-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 2MB FLASH 144WLCSP
PDF
/
Inventory: 2905
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 144-UFBGA, WLCSP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series STM32L4S
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
External Data Bus Width 16
Address Bus Width 26
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 16x12b; D/A 2x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, SAI, SPI, UART/USART, USB OTG
Program Memory Size 2MB 2M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 48MHz
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.71V~3.6V
RAM Size 640K x 8
Speed 120MHz
Number of I/O 115
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.8V
Supply Voltage-Max (Vsup) 3.6V
Base Part Number STM32L4S5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 0.8mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 144
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 10mm
Length 10mm
