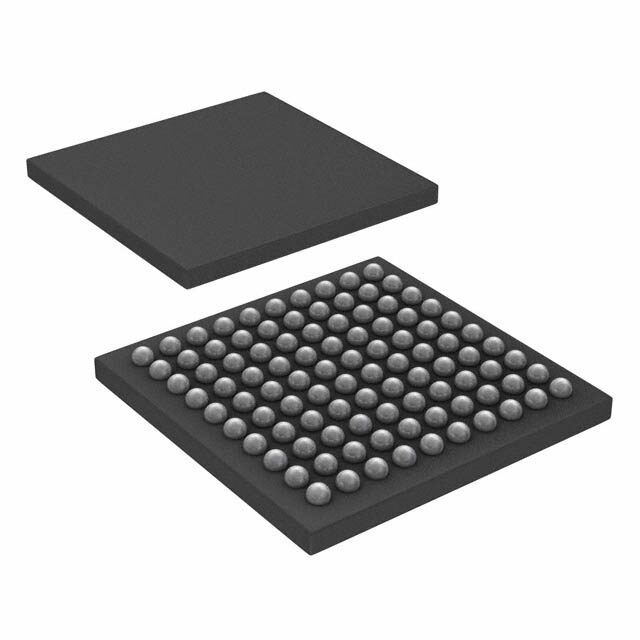

STM32L4A6VGY6PTR
RoHS
RoHS compliant
RoHS compliantPackage 100-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC Mcu 32 Bit 1MB Flash 100WLCSP
PDF
/
Buying Options
Total Price: USD $6.64
Unit Price: USD $6.644
≥1 USD $6.644
≥10 USD $6.10368
≥100 USD $5.85024
≥500 USD $5.567584
Inventory: 8354
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4.142mm
Length 4.618mm
Height Seated (Max) 0.585mm
Technical
Number of DMA Channels 14
Number of External Interrupts 16
Integrated Cache YES
Format FLOATING-POINT
External Data Bus Width 16
Low Power Mode YES
Boundary Scan YES
CPU Family CORTEX-M4
On Chip Program ROM Width 8
ROM (words) 1048576
Address Bus Width 24
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 16x12b; D/A 2x12b
Bit Size 32
Supply Current-Max 13.31mA
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG
Program Memory Size 1MB 1M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 48MHz
Peripherals Brown-out Detect/Reset, DMA, LCD, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.71V~3.6V
RAM Size 320K x 8
Speed 80MHz
Number of I/O 83
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.71V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code R-PBGA-B100
Base Part Number STM32L4A6
Reach Compliance Code compliant
Terminal Pitch 0.4mm
Supply Voltage 3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Number of Terminations 100
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series STM32L4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 100-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
