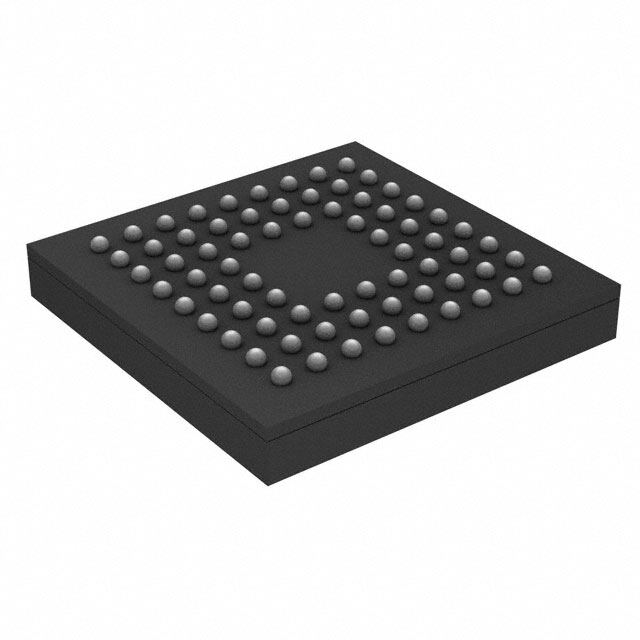

STM32L476JGY7TR
RoHS
RoHS compliant
RoHS compliantPackage 72-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-Bit STM32 ARM Cortex M4 RISC 1MB Flash 1.8V/2.5V/3.3V 72-Pin WLCSP T/R
PDF
/
Buying Options
Total Price: USD $30.88
Unit Price: USD $30.87595
≥1 USD $30.87595
≥10 USD $25.33365
≥100 USD $24.5423
≥500 USD $23.75
≥1000 USD $22.95865
Inventory: 1639
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 4.4084mm
Height Seated (Max) 0.585mm
Technical
Number of DMA Channels 14
On Chip Data RAM Width 8
Number of External Interrupts 16
RAM (words) 128000
Integrated Cache NO
Format FLOATING-POINT
Low Power Mode YES
Boundary Scan YES
Max Frequency 80MHz
CPU Family CORTEX-M4
On Chip Program ROM Width 8
Core Architecture ARM
Address Bus Width 2
Number of Timers/Counters 13
DAC Channels YES
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 16x12b; D/A 2x12b
Bit Size 32
Connectivity CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG
Program Memory Size 1MB 1M x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, LCD, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.71V~3.6V
RAM Size 128K x 8
Number of I/O 57
Oscillator Type Internal
Memory Size 1MB
Interface CAN, I2C, SPI, UART, USART, USB
Supply Voltage-Min (Vsup) 1.71V
Supply Voltage-Max (Vsup) 3.6V
Base Part Number STM32L476
Terminal Pitch 0.4mm
Supply Voltage 1.8V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Max Power Dissipation 434mW
HTS Code 8542.31.00.01
ECCN Code 3A991.A.2
Number of Terminations 72
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series STM32L4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C TA
Physical
Number of Pins 72
Package / Case 72-UFBGA, WLCSP
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Factory Lead Time 12 Weeks
