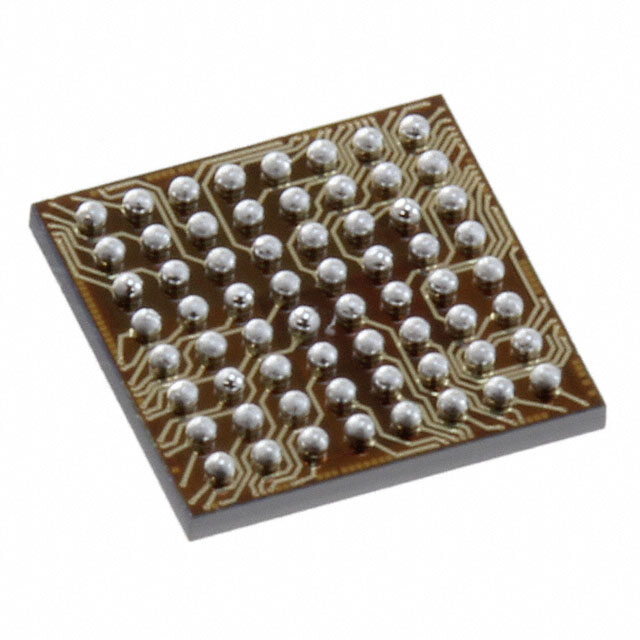

STM32L452RCY6TR
RoHS
RoHS compliant
RoHS compliantPackage 64-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 256KB FLASH 64LQFP
PDF
/
Inventory: 4712
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 64-UFBGA, WLCSP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series STM32L4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Base Part Number STM32L452
JESD-30 Code R-PBGA-B64
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.71V
Oscillator Type Internal
Number of I/O 52
Speed 80MHz
RAM Size 160K x 8
Voltage - Supply (Vcc/Vdd) 1.71V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, PWM, WDT
Clock Frequency 48MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 256KB 256K x 8
Connectivity CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB
Bit Size 32
Data Converter A/D 16x12b; D/A 1x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
ROM (words) 262144
On Chip Program ROM Width 8
CPU Family CORTEX-M4
Boundary Scan YES
Low Power Mode YES
Format FLOATING-POINT
Integrated Cache YES
RAM (words) 163840
Number of External Interrupts 16
On Chip Data RAM Width 8
Number of DMA Channels 14
Dimensions
Height Seated (Max) 0.585mm
Length 3.657mm
Width 3.357mm
Compliance
RoHS Status ROHS3 Compliant
