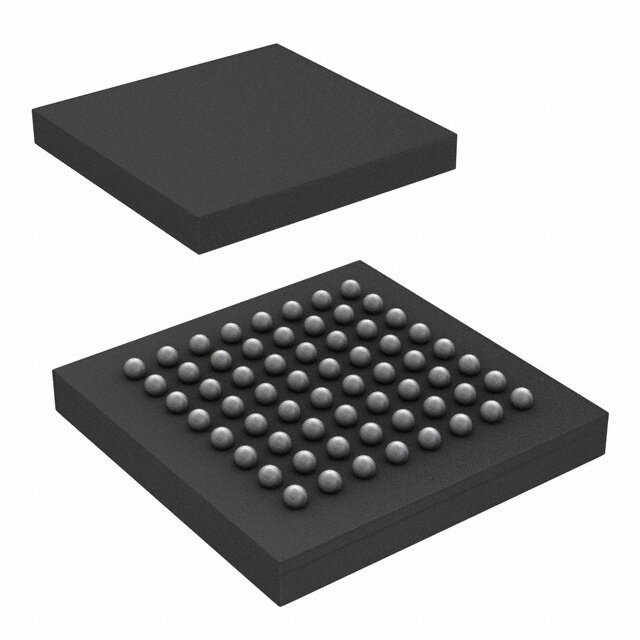

STM32L433RCY6TR
RoHS
RoHS compliant
RoHS compliantPackage 64-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 256KB FLASH 64WLCSP
PDF
/
Buying Options
Total Price: USD $5.53
Unit Price: USD $5.5264
≥1 USD $5.5264
≥10 USD $4.96056
≥100 USD $4.689344
≥500 USD $4.064104
≥1000 USD $3.855667
≥3000 USD $3.459685
Inventory: 109
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 64
ECCN Code 3A991.A.2
Additional Feature SEATED HT-CALCULATED
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3V
Terminal Pitch 0.35mm
Base Part Number STM32L433
JESD-30 Code R-PBGA-B64
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.71V
Oscillator Type Internal
Number of I/O 52
Speed 80MHz
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 1.71V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, LCD, PWM, WDT
Clock Frequency 48MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 256KB 256K x 8
Connectivity CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB
Bit Size 32
Data Converter A/D 16x12b; D/A 2x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
Part Status Active
Series STM32L4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
DAC Channels YES
ROM (words) 262144
On Chip Program ROM Width 8
CPU Family CORTEX-M4
Boundary Scan YES
Low Power Mode YES
Format FLOATING-POINT
Integrated Cache YES
RAM (words) 65536
Number of Timers 11
Number of External Interrupts 16
On Chip Data RAM Width 8
Number of DMA Channels 14
Physical
Surface Mount YES
Package / Case 64-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Factory Lead Time 12 Weeks
Dimensions
Height Seated (Max) 0.601mm
Length 3.141mm
Width 3.127mm
Compliance
RoHS Status ROHS3 Compliant
