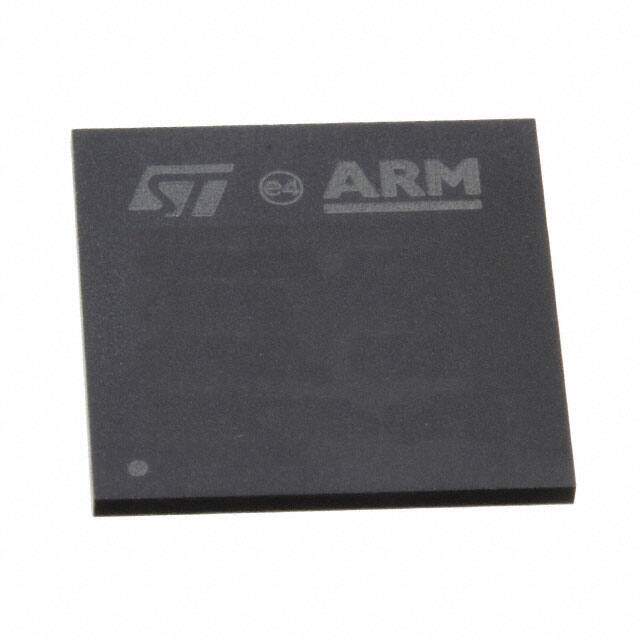

STM32F767NIH6
RoHS
RoHS compliant
RoHS compliantPackage 216-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 2MB FLASH 216TFBGA
PDF
/
Buying Options
Total Price: USD $15.83
Unit Price: USD $15.82717
≥1 USD $15.82717
≥10 USD $14.93129
≥100 USD $14.08612
≥500 USD $13.2888
≥1000 USD $12.5366
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 216-TFBGA
Surface Mount YES
Number of Pins 216
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series STM32F7
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 216
Additional Feature IT IS ALSO HAVING SPDIF, DCMI INTERFACE
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.8V
Terminal Pitch 0.8mm
Frequency 216MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STM32F767
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.7V
Memory Size 2MB
Oscillator Type Internal
Number of I/O 168
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 1.7V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M7
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 2MB 2M x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG
Bit Size 32
Data Converter A/D 24x12b; D/A 2x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
Address Bus Width 26
ROM (words) 2097152
On Chip Program ROM Width 8
External Data Bus Width 32
Dimensions
Height Seated (Max) 1.1mm
Length 13mm
Width 13mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
