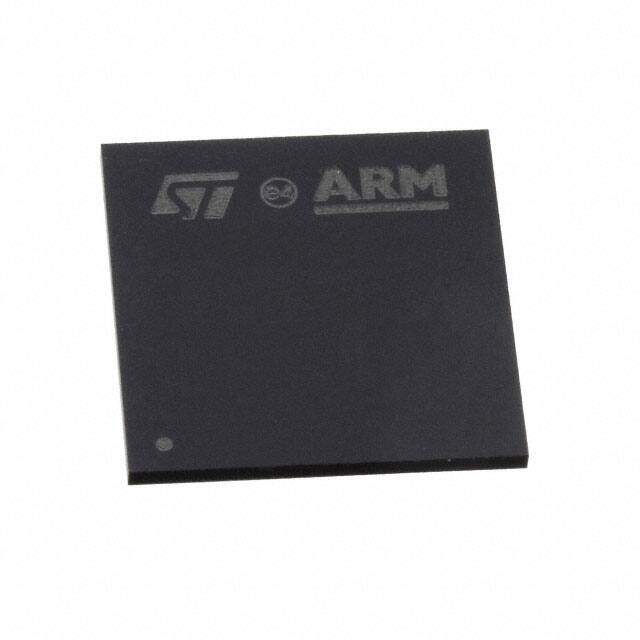

STM32F765NIH6
RoHS
RoHS compliant
RoHS compliantPackage 216-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 2MB FLASH 216TFBGA
PDF
/
Buying Options
Total Price: USD $18.72
Unit Price: USD $18.7176
≥1 USD $18.7176
≥10 USD $17.26648
≥100 USD $16.490496
≥500 USD $14.7444
≥1000 USD $14.065383
≥3000 USD $13.386384
Inventory: 405
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 13mm
Length 13mm
Technical
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 24x12b; D/A 2x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG
Program Memory Size 2MB 2M x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 26MHz
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Core Processor ARM? Cortex?-M7
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.7V~3.6V
RAM Size 512K x 8
Speed 216MHz
Number of I/O 168
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.8V
Supply Voltage-Max (Vsup) 3.6V
Base Part Number STM32F765
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.8mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 216
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series STM32F7
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 216-TFBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
