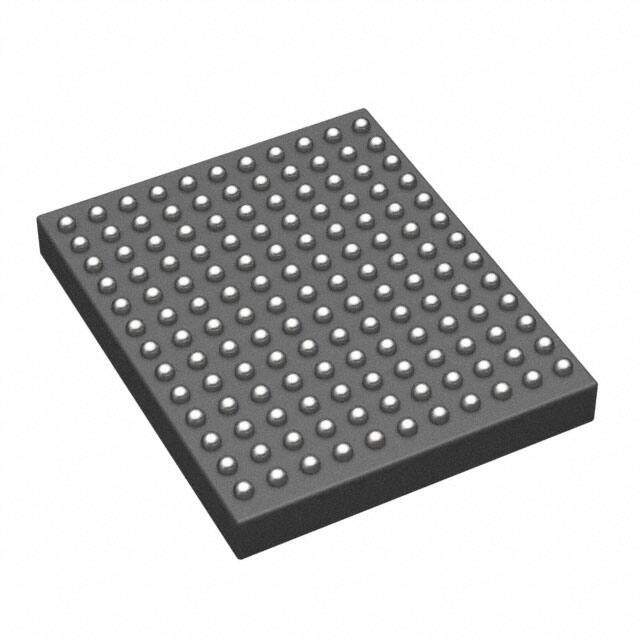

STM32F439ZIY6TR
RoHS
RoHS compliant
RoHS compliantPackage 143-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-bit STM32 ARM Cortex M4 RISC 2048KB Flash 3.3V/5V T/R
PDF
/
Buying Options
Total Price: USD $13.31
Unit Price: USD $13.3056
≥1 USD $13.3056
≥10 USD $12.2276
≥100 USD $11.720544
≥500 USD $10.326624
≥1000 USD $9.819814
≥3000 USD $9.186285
Inventory: 4758
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 5.547mm
Height Seated (Max) 0.585mm
Technical
CPU Family CORTEX-M4F
Core Architecture ARM
ROM (words) 2097152
Number of Timers/Counters 14
DAC Channels YES
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 24x12b; D/A 2x12b
Bit Size 32
Supply Current-Max 123mA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
Program Memory Size 2MB 2M x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 256K x 8
Number of I/O 114
Oscillator Type Internal
Memory Size 2MB
Interface CAN, EBI/EMI, Ethernet, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Supply Voltage-Min (Vsup) 1.7V
Power Supplies 2/3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
Base Part Number STM32F439
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 180MHz
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Max Power Dissipation 641mW
Subcategory Microcontrollers
ECCN Code 5A992.C
Number of Terminations 143
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series STM32F4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 143
Surface Mount YES
Package / Case 143-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
