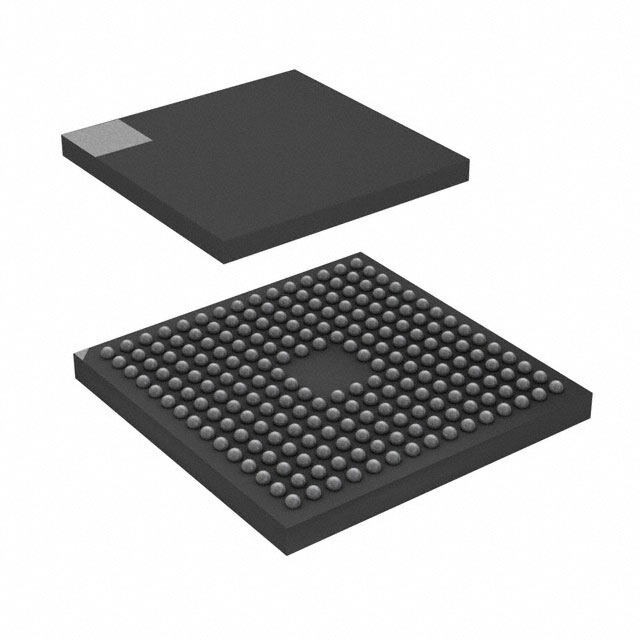

STM32F429NIH6TR
RoHS
RoHS compliant
RoHS compliantPackage 216-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 2MB FLASH 216TFBGA
PDF
/
Buying Options
Total Price: USD $29.53
Unit Price: USD $29.53265
≥1 USD $29.53265
≥10 USD $24.2326
≥100 USD $23.47545
≥500 USD $22.71735
≥1000 USD $21.9602
Inventory: 1655
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 216-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series STM32F4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 216
ECCN Code 3A991.A.2
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Base Part Number STM32F429
JESD-30 Code S-PBGA-B216
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.7V
Oscillator Type Internal
Number of I/O 168
Speed 180MHz
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Clock Frequency 26MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 2MB 2M x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
Supply Current-Max 123mA
Bit Size 32
Data Converter A/D 24x12b; D/A 2x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
Address Bus Width 26
ROM (words) 2097152
On Chip Program ROM Width 8
CPU Family CORTEX-M4
Boundary Scan YES
Low Power Mode YES
External Data Bus Width 32
Format FLOATING-POINT
Integrated Cache NO
Number of Serial I/Os 6
Number of DMA Channels 2
Dimensions
Height Seated (Max) 1.1mm
Length 13mm
Width 13mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
