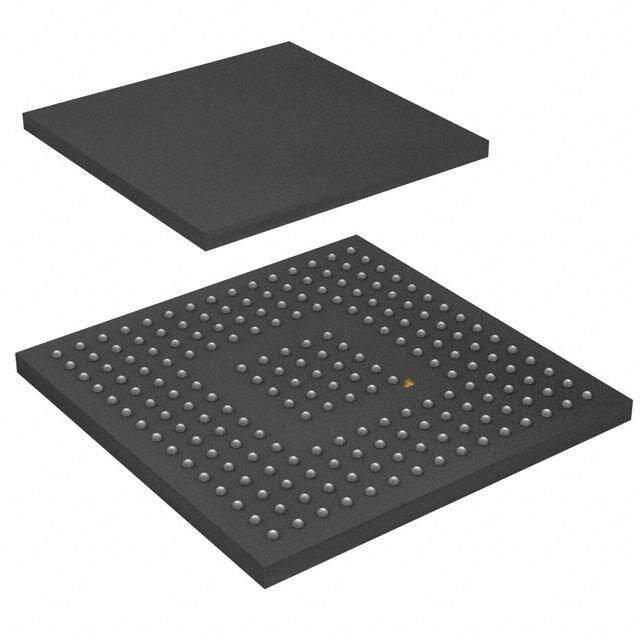

STM32F427IIH7
RoHS
RoHS compliant
RoHS compliantPackage 176-UFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
STMICROELECTRONICS STM32F427IIH7 MCU, 32BIT, CORTEX-M4, 180MHZ, UFBGA-176
PDF
/
Buying Options
Total Price: USD $17.41
Unit Price: USD $17.4064
≥1 USD $17.4064
≥10 USD $15.9984
≥100 USD $15.335232
≥500 USD $13.511722
≥1000 USD $12.848554
≥3000 USD $12.019612
Inventory: 3065
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 176-UFBGA
Surface Mount YES
Number of Pins 176
Technical
Operating Temperature -40°C~105°C TA
Packaging Tray
Series STM32F4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 176
ECCN Code 3A991.A.2
Subcategory Microcontrollers
Max Power Dissipation 513mW
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.3V
Terminal Pitch 0.65mm
Frequency 180MHz
Base Part Number STM32F427
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.6V
Interface CAN, EBI/EMI, Ethernet, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB
Memory Size 2MB
Oscillator Type Internal
Number of I/O 140
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 2MB 2M x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
Supply Current-Max 135mA
Bit Size 32
Data Converter A/D 24x12b; D/A 2x12b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 32b
PWM Channels YES
DAC Channels YES
Number of Timers/Counters 14
ROM (words) 2097152
Core Architecture ARM
On Chip Program ROM Width 8
CPU Family CORTEX-M4
Dimensions
Height Seated (Max) 0.6mm
Length 10mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
