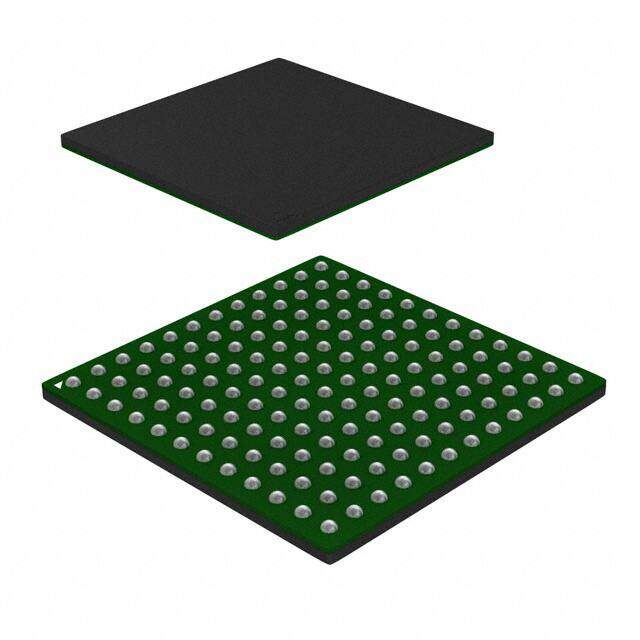

STM32F413ZHJ6
RoHS
RoHS compliant
RoHS compliantPackage 144-UFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1.5MB FLASH 144BGA
PDF
/
Buying Options
Total Price: USD $48.33
Unit Price: USD $48.3265
≥1 USD $48.3265
≥10 USD $39.653
≥100 USD $38.41325
≥500 USD $37.17445
≥1000 USD $35.93565
≥3000 USD $32.21735
Inventory: 4408
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 144-UFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series STM32F4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STM32F413
JESD-30 Code S-PBGA-B144
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.7V
Oscillator Type Internal
Number of I/O 114
Speed 100MHz
RAM Size 320K x 8
Voltage - Supply (Vcc/Vdd) 1.7V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Clock Frequency 26MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 1.5MB 1.5M x 8
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG
Bit Size 32
Data Converter A/D 16x12b; D/A 2x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
Address Bus Width 26
ROM (words) 1572864
On Chip Program ROM Width 8
External Data Bus Width 16
Dimensions
Height Seated (Max) 0.6mm
Length 10mm
Width 10mm
Compliance
RoHS Status ROHS3 Compliant
