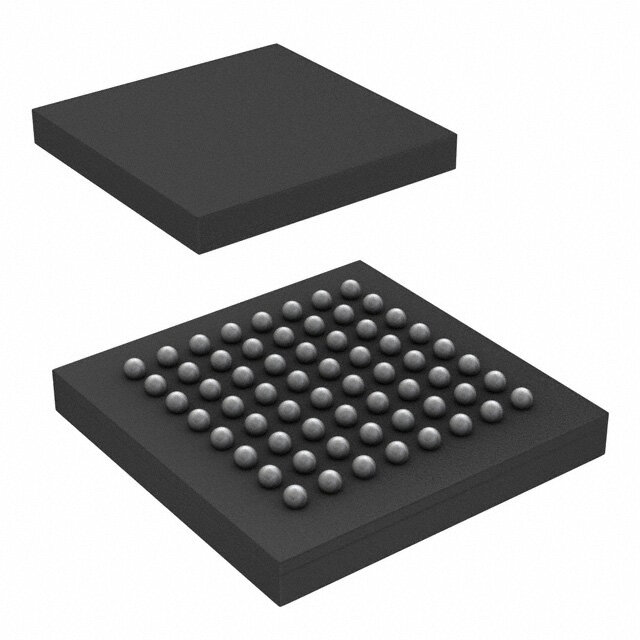

STM32F412RGY6TR
RoHS
RoHS compliant
RoHS compliantPackage 64-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 1MB FLASH 64WLCSP
PDF
/
Buying Options
Total Price: USD $17.16
Unit Price: USD $17.163253
≥1 USD $17.163253
≥10 USD $16.191753
≥100 USD $15.27523
≥500 USD $14.410596
≥1000 USD $13.594908
Inventory: 1320
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 64-UFBGA, WLCSP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series STM32F4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 64
ECCN Code 3A991.A.2
Additional Feature POWER-DOWN MODE
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.3V
Terminal Pitch 0.4mm
Base Part Number STM32F412
JESD-30 Code R-PBGA-B64
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.7V
Oscillator Type Internal
Number of I/O 50
Speed 100MHz
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 1.7V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Clock Frequency 26MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 1MB 1M x 8
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB OTG
Supply Current-Max 30.84mA
Bit Size 32
Data Converter A/D 16x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels NO
Address Bus Width 32
ROM (words) 1048576
On Chip Program ROM Width 8
CPU Family CORTEX-M4
Boundary Scan YES
Low Power Mode YES
External Data Bus Width 16
Format FLOATING-POINT
RAM (words) 65536
Number of Timers 14
Number of External Interrupts 21
On Chip Data RAM Width 8
Number of DMA Channels 16
Dimensions
Height Seated (Max) 0.585mm
Length 3.651mm
Width 3.623mm
Compliance
RoHS Status ROHS3 Compliant
